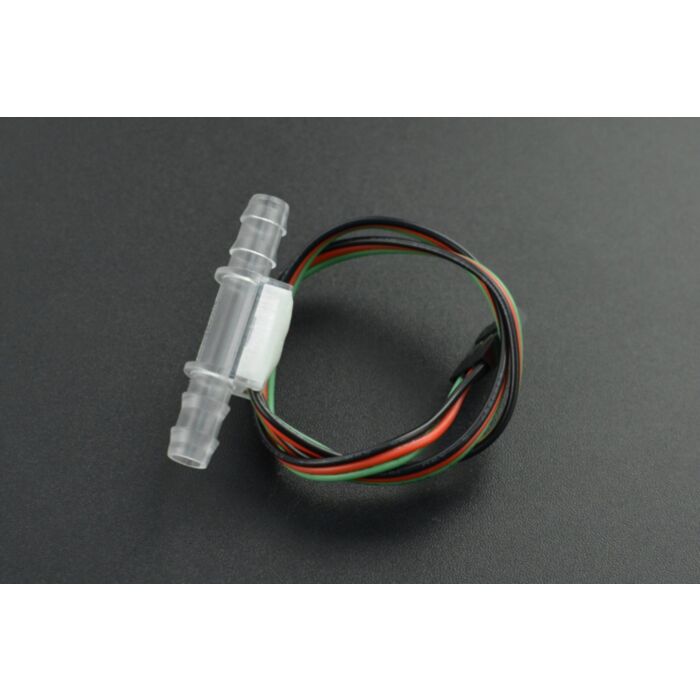

Capacitive Pipeline Liquid Level Sensor

SKU: SEN0509 Brand: DFRobot

This capacitive pipeline liquid level sensor of high sensitivity is suitable for non-metallic pipes with a diameter of 6mm. The sensor outputs digital...

$17.50 AUD, inc GST

$15.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 17

Quantity Discounts:

10-25 $15.44 (exc GST)
25+ $15.11 (exc GST)

Introduction

This capacitive pipeline liquid level sensor of high sensitivity is suitable for non-metallic pipes with a diameter of 6mm. The sensor outputs digital high/low level(low when liquid detected) and adopts 3-pin DuPont connector, which can be widely used in beverage machines, small water pipe level detection, and infusion pipe level detection scenarios.

Working Principle

The liquid level sensor uses the sensing capacitance of water to detect the presence of liquid. When there is no liquid approaching the sensor, the sensor has a certain static capacitance due to the distributed capacitance. When the liquid level slowly rises close to the inductor, the parasitic capacitance of the liquid will be coupled to the static capacitor, causing the final capacitance of the inductor to become larger. The changed capacitance signal is then input to the control IC for signal conversion, which will change. The capacitance is converted into the amount of change of an electrical signal, and then a certain algorithm detects and judges the degree of the change. When the amount of change exceeds a certain threshold, the liquid level is considered to reach the sensing point.

Dimension

Connection Diagram

Features

High sensitivity

Adopts 3-pin DuPont connector

Applications

Beverage machines

Small water pipe level detection

Infusion pipe level detection scenarios

Specification

Working Voltage: 2.5~5.5VDC

Working Current: 5V290uA 3V235uA

Output: low (liquid detected), high level(no liquid detected)

Hysteresis: ±0.25%FS

Interval Medium: plastic

Protection Level: IP62

Operating Temperature: -20~100°C

Weight: 3g

Documents

Product wiki

Parts List

Capacitive Pipeline Liquid Level Sensor x1
