Bluno Beetle

Rating:

93% of 100

SKU: DFR0339 Brand: DFRobot

Our "Beetle" series derives its core notion from minimalism without compromising functionality. Beetle aims to solve problems of low-cost controller, ease-of-using properly, and to provide a low cost solution for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.

$25.65 AUD, inc GST

$23.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $22.38 (exc GST)
25+ $21.68 (exc GST)

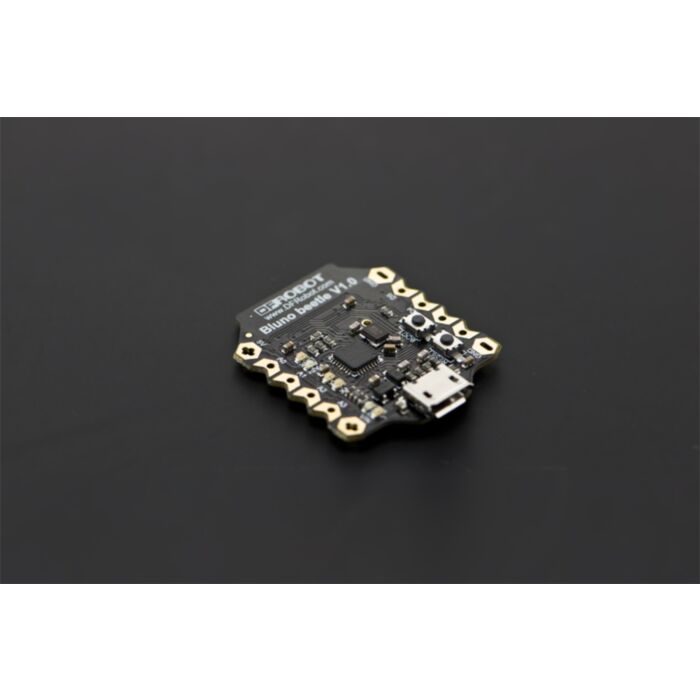

The Beetle Ble (Former name as Bluno Beetle) is a board based on Arduino Uno with Bluetooth 4.0 (BLE). It is probably the smallest BLE board in the market. It uses standard Arduino IDE to upload codes via without any extra library and drivers. This Beetle BLE is another milestone in the Beetle line, which makes DIY users have more options in the project design. It is fully compatible with Bluno in instructions and procedures. Support Bluetooth HID and ibeacon modes. You may also check the Bluetooth microcontroller selection guide to get more information.

The Beetle BLE is a super tiny and low-cost Arduino-compatible board with Bluetooth 4.0. The Beetle BLE can be used for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles wearable, and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.

Just like a native Arduino board, but with Bluetooth 4.0. An APP called Play Bluno is available on IOS and Android which gives quick access to this little tiny board.
It not only supports USB programming but also wireless uploading method. With the V-shaped gilded I/O interface, it is convenient to screw conductor wire on it, which could a good choice in the wearable market.

Introduction to Bluno Series

Features

ATmega328@16MHz
Bluetooth Low Energy (BT 4.0)
Micro USB port
Super Compact Size
Support Bluetooth HID and ibeacon
Compatible with all DFRobot Bluno Series
Support Wireless Programming

Specification

Bluetooth Chip: CC2540
Sensitivity: -93dBm
Working Temperature:-10°C ~ +85°C
Maximun Distance:50m(1968.50")(Open field)
Microcontroller: ATmega328
Clock frequency: 16 MHz
Operating voltage: 5V DC
Input voltage: <8V (Vin < 8V)
Digital Pin x4
Analog Pin x4
PWM Output x2
UART interface x1
I2C interface x1
Micro USB interface x1
Power port x2
Size:28.8mm X 33.1mm(1.13" x 1.30")
Weight:10g

Projects

Project 1. How to Make a Jumping Paper Frog
Back in the 80’s and 90’s kids made their own toys like paper planes and spinning tops. These toys accompanied them throughout their childhood. Now let's make a frog.

Materials

1. Bluno Beetle controller
2. 3.7V Battery
3. Analog Sound Sensor ( compatible with Arduino)
4. Player module

Bluno Beetle Project 2:How To Make a Color Light based on Bluno Beetle

Materials

- Bluno Beetle

- Wireless charging battery

- LSM303 Breakout Board - Tilt Compensated Compass

- Digital RGB LED Strip 60 LED - (3m)(weatherproof)

- Light Disc with 7 SMD RGB LED

Bluno Beetle Project 3:let’s make an AR Pikachu with Bluno Beetle

Materials

- Bluno Beetle

- 1.75mm PLA (1kg) - Gold

- OverLord 3D Printer - Classic Blue (EU)

Bluno Beetle Project 4:How to Make A Pet Wearable with Bluno Beetle

Components

- Beetle BLE

- Digital RGB LED Strip 60 LED - (3m)(weatherproof)

- LilyPad LED Micro - White (5pcs)

- DFPlayer - A Mini MP3 Player For Arduino

- 3.7V Polymer Lithium-Ion Battery - 1000mAh

- Speaker

Beetle Project 5: DIY Deer Clock

Project Introduction We are going to make a table clock showing time in a lovely way. This product has quite a cute look and the LED screen makes it cool.

The hardware you need to do this project:

- Gravity: I2C SD2405 RTC Module

- Beetle

- FireBeetle Covers-24×8 LED Matrix (White)

- Micro USB cable

Project 6. Application Tutorials of FireBeetle Board - ESP32 BLE: Smarten a Plugboard

What you have seen is a smart plugboard that converted by the ESP32 master board and controlled by the BLE of ESP32.

Hardware in need:

Project 7. How To Make A Smart Clock with ESP32?

I’ve always been dreaming of making a desktop clock without complex functions, just smaller and can display time.

Hardware:

Gravity I2C OLED-2864 Display
Gravity: I2C Triple Axis Accelerometer
Beetle BLE
Lithium Battery Charger
3.7V Polymer Lithium Ion Battery - 1000mA
Shell (3D printing)
Black Acrylic Transparent Board

Documents

Parts List

Beetle BLE x1
