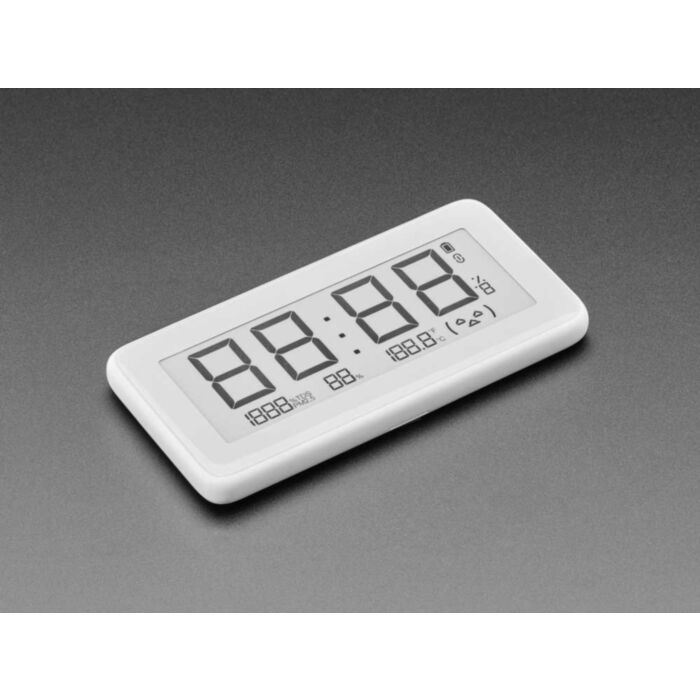

Bluetooth eInk Display Clock with Temperature Humidity Sensor - LYWSD02

Skip to the beginning of the images gallery

Bluetooth eInk Display Clock with Temperature Humidity Sensor - LYWSD02

SKU: ADA5023 Brand: Adafruit

Here is a jolly cute Bluetooth-enabled sensor-and-digital-clock to monitor your room's temperature and humidity. Only 110mm x 55mm, we dig its medium-size form factor and minimal design.

$68.55 AUD, inc GST

$62.32 AUD, exc GST

Available with a lead time
Expect dispatch between May 12 and May 15

Quantity Discounts:

6+ $59.83 (exc GST)
12+ $57.95 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Here is a jolly cute Bluetooth-enabled sensor-and-digital-clock to monitor your room's temperature and humidity. Only 110mm x 55mm, Adafruit dig its medium-size form factor and minimal design.

The shell is made of durable ABS material. Upfront you get a 3.5" x 1.25" (87mm x 32mm) eInk display. These sensors are sold to work with the Mijia "Mi Home" App (iOS and Android) - they emit the measured humidity and temperature over Bluetooth LE up to about 10 meters away.

And while it's totally fine to use it with the Mi app, Adafruit like this more for its use cases in general home automation and sensing projects!The sensor has two modes. One is advertising modes, where it sends out sensor data every few minutes. The advertisements are encrypted so not easy to read. You can also connect to it as a BLE device and read from the sensor characteristic, which thankfully is not encrypted. You can use these with ESPHome / Home Assistant as a remote sensor node. They also work great just as an

E-Ink clock, note that to set the time you should use this web-bluetooth page that will connect and fix the timezone.

Comes with 2 x CR2032 coin cell batteries (pre-installed), a magnet, and adhesive stickers, so you can mount the clock sensor anywhere you please.

Technical Details

For further support and information, please go to www.mi.com
Materials: ABS + PC
Rated Voltage: 3V
Temperature Range: 0ºC ~ 60ºC
Humidity Range: 0-99% RH
Wireless Connectivity: Bluetooth 4.0, Bluetooth Low Energy
Product Dimensions: 110.0mm x 55.0mm x 10.1mm / 4.3" x 2.2" x 0.4"
Product Weight: 60.0g / 2.1oz
