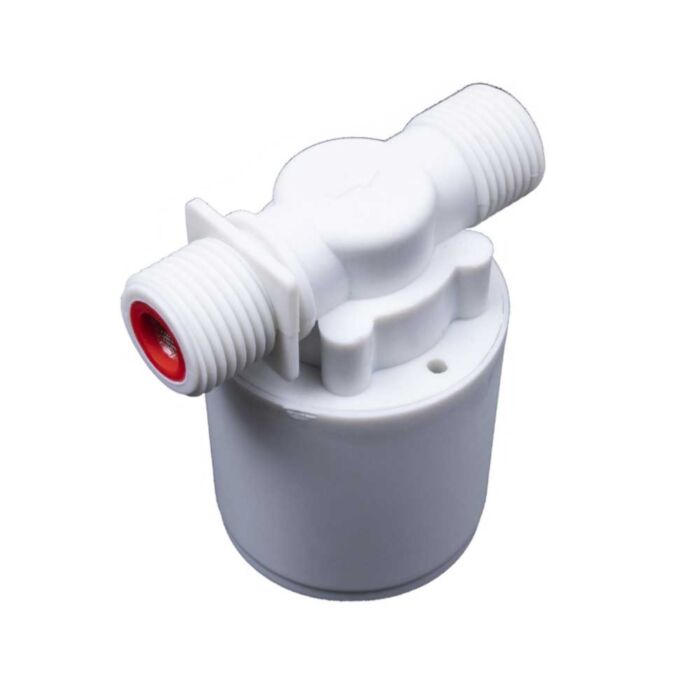

Automatic Water Level Switch/Control Valve - Horizontal

SKU: SS101990649 Brand: Seeed Studio

This is an automatic water level switch/control valve with a G1/2'' thread and has a horizontal inlet. This valve is an inside installation type.

$8.25 AUD, inc GST

$7.50 AUD, exc GST

Quantity Discounts:

10-25 $7.20 (exc GST)
25+ $6.97 (exc GST)

Out of Stock

Are you tired of using traditional float ball valves to control water flow to your water tanks?

We bring you an all-new automatic water level control valve which features a compact design compared to the traditional float ball valves.

This is a horizontal level switch, we also offer a vertical switch.

Features

Automatic Control Mechanism for convenient use
High Water Flow Range with G1/2'' thread horizontal inlet
Compact size for easy installation
Long Life with no electricity needed

Specifications

Maximum install inclination: 30°
Working pressure range: <1.0MPa
Applicable Medium Water: Tap-Water
Applicable Medium temperature: ≤1-80°C
High temperature resistant medium temperature: -20°C ~+100°C

How Does It Work?
A float valve inside allows water to flow until a specific level is reached. Once the water reaches this level, the float valve will be pushed up with water due to buoyancy and stop the flow of water. When the water level starts dropping, the valve will open again, and the water will start to flow again.

How Is It Installed?
This water control valve is installed into a water tank as follows.

Notes

If 2 control valves are installed inside the same tank, they should be placed on the same level.
Before installing and using this valve, be sure to clean the impurities in the pipe
There will be water leakage at the bottom of the valve, which is a normal phenomenon.

Applications

High Water tanks
Pools
Water Towers

Downloads

CAD file PDF
