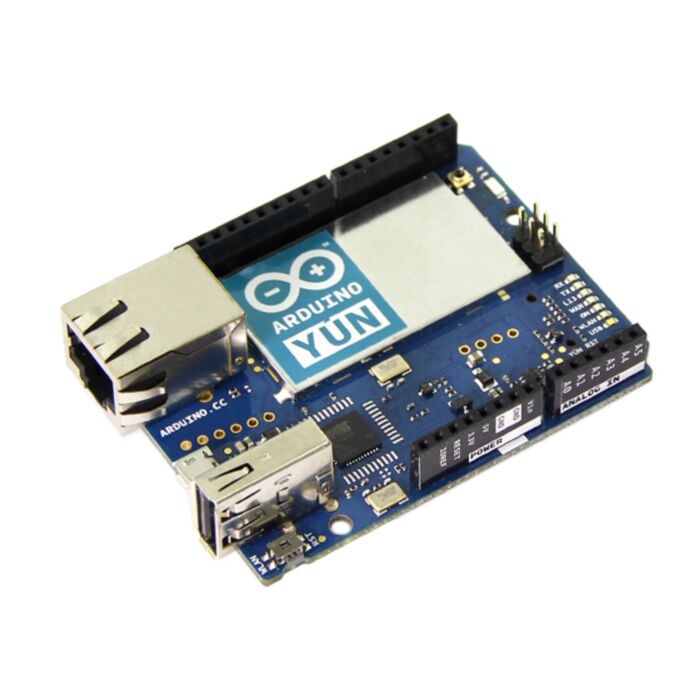

Arduino YÚN (Seeed Studio)

SKU: SS102990070 Brand: Seeed Studio

Retired Product

Search for an alternative
This product has been retired. It is no longer available, but this page has been kept for reference.

This product is retired, please consider our Seeeduino Cloud - Arduino Yun compatible openWRT controller as your alternative choice.

Arduino YÚN is the first member of a new groundbreaking line of wifi products combining the power Linux with ease of use of Arduino.

The first Arduino YÚN is the combination of a classic Arduino Leonardo (based on the Atmega32U4 processor) with a Wifi system-ona-chip running Linino (a MIPS GNU/Linux based on OpenWRT). We embedded the Linux machine directly on the PCB of the Arduino Leonardo and we connected the two so that from Arduino it’s very easy to run commands on the Linux side and use it as an Ethernet and Wifi interface.

For more details, please refer to its datasheet.

Technical Specifications
AVR Arduino microcontroller
  • Microcontroller                     ATmega32u4
  • Operating Voltag                 5V
  • Input Voltage                        5V
  • Digital I/O Pins                      20
  • PWM Channels                     7
  • Analog Input Channels     12
  • DC Current per I/O Pin      40 mA
  • DC Current for 3.3V Pin    50 mA
  • Flash Memory                     32 KB (of which 4 KB used by bootloader)
  • SRAM                                     2.5 KB
  • EEPROM                                1 KB
  • Clock Speed                         16 MHz

Linux microprocessor
  • Processor                       AtherosAR9331
  • Architecture                MIPS @400MHz
  • Operating Voltage      3.3V
  • Ethernet                         IEEE 802.3 10/100Mbit/s
  • WiFi                                IEEE 802.11b/g/n
  • USB Type-A                  2.0 Host/Device
  • Card Reader                Micro-SD only
  • RAM                               64 MB DDR2
  • Flash Memory              16 MB
  • PoE compatible 802.3af card support
