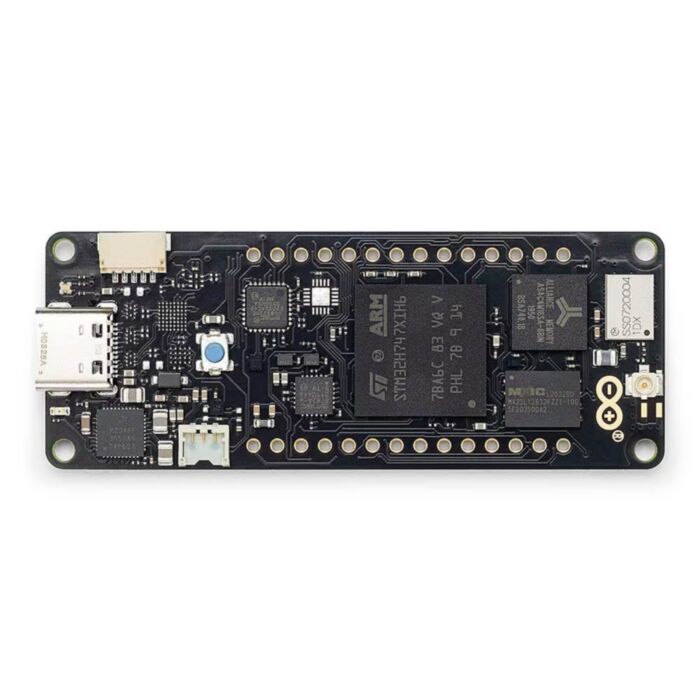

Arduino Portemta H7 Lite Connected

The Portenta H7 Lite Connected packs dual-core performance and onboard wireless into a compact Portenta module, optimised for edge AI and low-latency control where high-resolution video is not required.

Ideal for applications that need simultaneous high-level algorithms and real-time control, it supports TensorFlow Lite inference on one core while the other handles sensor, actuator or UI tasks. Typical uses include industrial controllers, robotics, machine vision (with a dedicated vision shield) and mission-critical embedded systems.

Technical Specifications

• Microcontroller: STM32H747XI dual-core Arm MCU (Cortex-M7 at 480 MHz + Cortex-M4 at 240 MHz)
• Compute model: Dual cores communicate via Remote Procedure Call for seamless cross-core calls; supports Arduino sketches on Mbed OS, native Mbed apps, MicroPython, JavaScript interpreter and TensorFlow Lite
• Connectivity: Ethernet (via expansion), WiFi and Bluetooth on-board
• Security: Onboard secure element - Microchip ATECC608
• Power: USB/VIN 5 V input; USB-C programming connector also supports power, host/device and OTG; USB host/device high/full speed and power delivery supported
• Battery support: Li-Po single cell, 3.7 V (minimum 700 mAh) with integrated charger
• Circuit operating voltage: 3.3 V
• Current consumption: 2.95 uA in standby (Backup SRAM OFF, RTC/LSE ON)
• Timers: 22 timers and watchdogs
• UART: 4 ports (2 with flow control)
• Ethernet PHY: 10/100 Mbps (accessible via expansion port only)
• SD card: Interface available via expansion port
• Camera interface: 8-bit parallel, up to 80 MHz (for use with Portenta Vision Shield)
• ADC: 3 ADCs, 16-bit max resolution, up to 36 channels, up to 3.6 MSPS
• DAC: 2 x 12-bit DAC (1 MHz); one DAC exposed to user via external A6 pin
• Mechanical/expansion: Two 80-pin high-density connectors for scaling and peripheral access; MKR-compatible headers to use existing MKR shields
