Arduino Portenta Breakout

SKU: ASX00031 Brand: Arduino

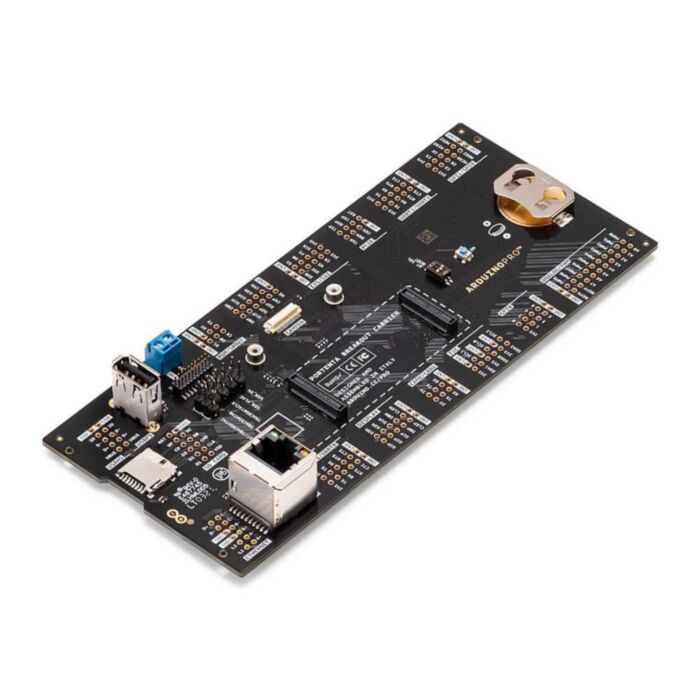

Arduino Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards (e.g. the Portenta H7). It makes all high-density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab.
$109.95 AUD, inc GST
$99.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 23rd of May

Quantity Discounts:

  • 5-10 $98.95 (exc GST)
  • 10+ $97.95 (exc GST)
  • 30+ $96.95 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Arduino Portenta Breakout board is designed to help hardware engineers and makers to prototype and help test devices connections and capacity within the Portenta family boards (e.g. the Portenta H7). It makes all high-density connectors’ signals individually accessible, making it quick and easy to connect and test external hardware components and devices as normally needed during development in the lab.

Application Examples

  • This product is designed to work alongside the Portenta family. Please check the Getting Started guide of your Portenta board.
  • Product Development: The Portenta Breakout board reduces development time for industrial grade solution automation based on the Portenta line.
  • OpenMV: Connectivity to the OpenMV Global Shutter Camera Module is provided on the Portenta Breakout board allowing for rapid development of machine vision applications alongside the Portenta family.
  • Technical Education: The Portenta Breakout board can act as the first point of entry for technician education in industrial grade control and embedded systems.

Features

  • Power ON Button
  • Boot mode DIP switch
  • Connectors
    • USBA
    • RJ45 GBit Ethernet
    • Micro SD card
    • OpenMV shutter module
    • MIPI 20T JTAG with trace capability
  • Power
    • CR2032 RTC Lithium Battery backup
    • External power terminal block
  • I/O
    • Break out all Portenta High Density connector signals
    • Male/female HD connectors allow interposing breakout between Portenta and shield to debug signals
  • Compatibility
    • Standard Portenta High Density connector pinout
  • Safety information
    • Class A

Technical Specifications

  • USB port: USBA
  • Ethernet: RJ45 GBit
  • Memory slot: Micro SD card
  • Camera connector: OpenMV shutter module
  • Debug: MIPI 20T JTAG with trace capability
  • Connectors: HD male/female
  • RTC power battery: CR2032
  • Length: 164 mm
  • Width: 72 mm
  • Weight: 0,069 Kg

Accessories

  • 8-, 10-, 12- and 22-pin headers/connectors with 2.54 mm pitch
  • 20 pin JTAG programmer
  • OpenMV Global Shutter Camera Module

Documentation

The Arduino Portenta Breakout Carrier is open-source hardware! You can build your own board using the following files:

Pinout Diagram
