RFID Reader ID-3LA (125 kHz)

SKU: SEN-11862

$43.50 AUD, inc GST
$39.55 AUD, exc GST

More Views

RFID Reader ID-3LA (125 kHz)
43.5 AUD

SKU: SEN-11862

$43.50 AUD, inc GST
$39.55 AUD, exc GST
In stock, with a short lead time. 45 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 29th of Aug with Express Post within Australia.
Shipping Offer

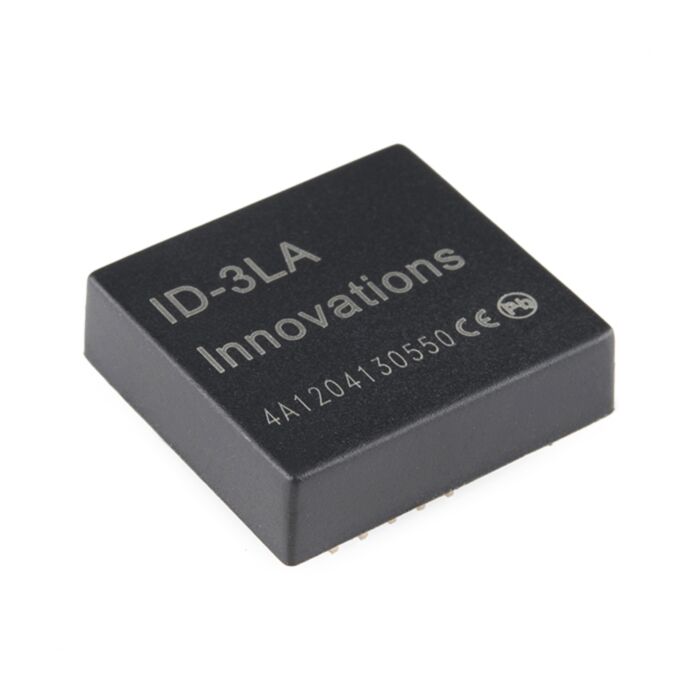

RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-3LA, a very simple to use RFID reader module from ID Innovations. The only holdups are the 2mm pin spacing and you will need an external antenna. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

Note: The new ID-3LA is essentially the same as the ID-2, but has a lower voltage input.

Features:

  • 2.8~5V supply
  • 125kHz read frequency
  • EM4001 64-bit RFID tag compatible
  • 9600bps TTL and RS232 output
  • Magnetic stripe emulation output

Dimensions: 19x21mm
