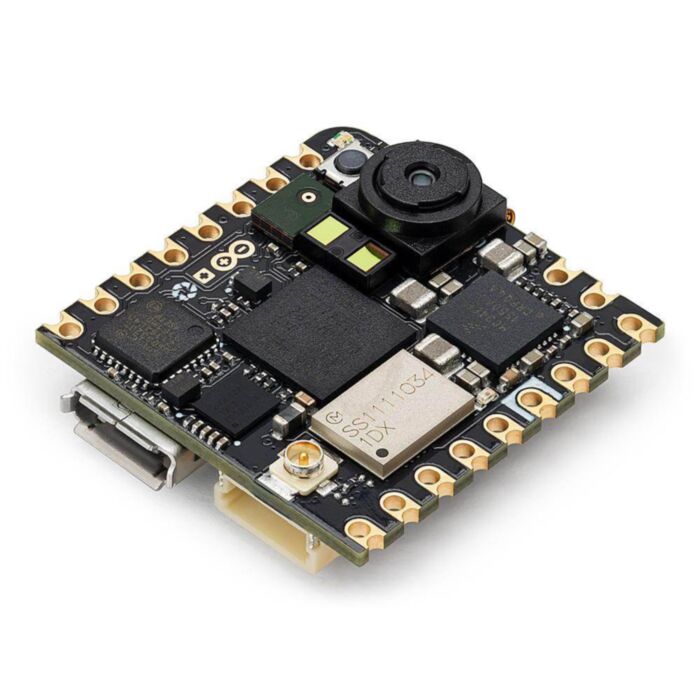

Arduino Nicla Vision

SKU: ABX00051 Brand: Arduino

Deploy computer vision at the edge faster than ever, with our ready-to-use, standalone intelligent camera.

$234.95 AUD, inc GST

$213.59 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 21 and Nov 01

Quantity Discounts:

5-10 $211.45 (exc GST)
10+ $209.32 (exc GST)

Nicla Vision allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it’s easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you’re a beginner or a pro, we have a wide range of plans to make sure you get the features you need.

Nicla Vision combines a powerful STM32H747AII6 Dual ARM® Cortex® M7/M4 IC processor with a 2MP color camera that supports TinyML, as well as a smart 6-axis motion sensor, integrated microphone and distance sensor.
You can easily include it into any project because it’s designed to be compatible with all Arduino Portenta and MKR products, fully integrates with OpenMV, supports MicroPython and also offers both WiFi and Bluetooth® Low Energy connectivity. It’s so compact – with its 22.86 x 22.86 mm form factor – it can physically fit into most scenarios, and requires so little energy it can be powered by battery for standalone applications.

All of this makes Nicla Vision the ideal solution to develop or prototype with on-device image processing and machine vision at the edge, for asset tracking, object recognition, predictive maintenance and more – easier and faster than ever. Train it to spot details, so you can focus on the big picture.

Key benefits include:

Tiny form factor of 22.86 x 22.86 mm
Powerful processor to host intelligence on the edge
Packed with a 2MP color camera that supports TinyML, smart 6-axis motion sensor, microphone and distance sensor
Wi-Fi and Bluetooth® Low Energy connectivity
Supports MicroPython
Standalone when battery powered
Expand existing project with sensing capabilities, make MV prototyping faster

Automate anything

Check every product is labeled before it leaves the production line; unlock doors only for authorized personnel, and only if they are wearing PPE correctly; use AI to train Nicla Vision to regularly check analog meters and beam readings to the Cloud; teach it to recognize thirsty crops and turn the irrigation on when needed.
Anytime you need to act or make a decision depending on what you see, let Nicla Vision watch, decide and act for you.

Feel seen

Interact with kiosks with simple gestures, create immersive experiences, work with cobots at your side. Nicla Vision allows computers and smart devices to see you, recognize you, understand your movements and make your life easier, safer, more efficient, better.

Keep an eye out

Let Nicla Vision be your eyes: detecting animals on the other side of the farm, letting you answer your doorbell from the beach, constantly checking on the vibrations or wear of your industrial machinery.
It’s your always-on, always precise lookout, anywhere you need it to be.

Arduino IoT Cloud Compatible

Use your MKR board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.

Try Arduino IoT Cloud for free

Tech specs

Microcontroller	STM32H747AII6 Dual Arm® Cortex® M7/M4 IC: 1x Arm® Cortex® M7 core up to 480 MHz 1x Arm® Cortex® M4 core up to 240 MHz
Sensors	2 MP Color Camera 6-Axis IMU (LSM6DSOX) Distance / Time Of Flight sensor (VL53L1CBV0FY/1) Microphone (MP34DT05)
I/O	Castellated pins with the following features: 1x I2C bus (with ESLOV connector), JTAG, Power and GPIO pin headers 1x serial port 1x SPI 2x ADC Programmable I/O voltage from 1.8-3.3V
Power	High speed USB (480Mbps) Pin Header 3.7V Li-po battery with Integrated battery charger and fuel gauge (MAX17262REWL)
Dimensions	22.86 mm x 22.86 mm
Memory	2MB Flash / 1MB RAM 16MB QSPI Flash for storage
Security	NXP SE050C2 Crypto chip
Connectivity	Wi-Fi / Bluetooth® Low Energy 4.2 (Murata 1DX - LBEE5KL1DX-883)
Interface	USB interface with debug functionality
Operating temperature	-20° C to +70° C (-4° F to 158°F)

Documentation

Schematic

Pinout

Datasheet

Learn more

Resources

This product is listed in:

Development Boards
Sensors>Camera
Development Boards>Peripherals included!
