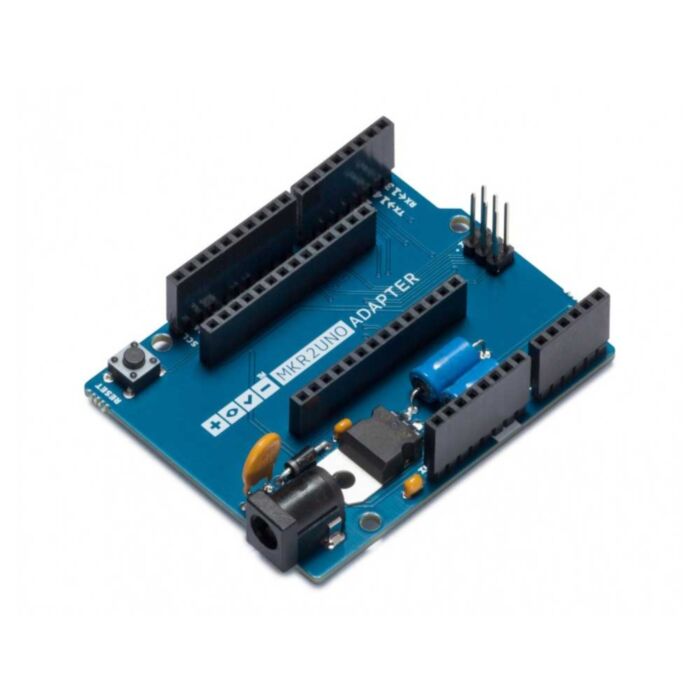

Arduino MKR2UNO Adapter

SKU: TSX00005 Brand: Arduino
Simply mount your MKR1000 to this new adapter and plug in any of your UNO shields!
$32.85 AUD, inc GST
$29.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 8th of May

Quantity Discounts:

  • 5-10 $29.56 (exc GST)
  • 10+ $29.26 (exc GST)
  • 30+ $28.96 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The MKR2UNO Adapter allows you to turn your Arduino UNO form factor based project into a MKR based one without too much effort! You can so upgrade your project with a powerful board with integrated LiPo battery charger.

Technical Specifications

Digital I/O Pins 3.3V
Input Voltage (recommended) 7-12V
Input Voltage (limit) 6-16V
Analog Input Pins 6
Analog Output Pins 1
DC Current per I/O Pin 14
DC Current for 3.3V Pin  700mA
DC Current for 5V Pin 700mA
Length 68.6mm
Width 53.4mm
Weight 24g

OSH: Schematics

MKR2UNO is open-source hardware! You can build your own board using the following files:

Please keep in mind that the MKR2UNO is just a form factor adapter and so is NOT present any voltage translation. Be careful before connecting a shield since shield without IOREF level shifting capability may not work properly.


Like in many others Arduino boards this adapter allows to power your MKR board using a barrel jack with center positive polarity or the VIN pin on the headers.

If you want to use the Arduino MKRZero and the Arduino WIFi shield 101 read the Arduino WIFi shield 101 reference to change module pins.

Unlike the Arduino UNO, the MKR2UNO Adapter do NOT have I2C signals on A4 and A5 and SPI on pins 11, 12 and 13.

All the pins on the MKR2UNO Adapter are wired one to one from the MKR to the UNO form factor with some exception:

MKR form factor pin  UNO form factor pin
0 13
1 10
13 0
14 1
