Arducam CSI to HDMI Cable Extension Module

SKU: AC-B0091 Brand: Arducam

The CSI-HDMI adapter board is designed for Raspberry Pi Camera Module 3/V1/V2/HQ,  to extend the camera over the long cables while keeping the high-speed CSI signals away from noise and interference.

$22.90 AUD, inc GST
$20.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $20.19 (exc GST)
  • 25+ $19.78 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This product relies on pins that are not present on all HDMI cables, so if you have issues, try a different cable.

The CSI-HDMI adapter board is designed for Raspberry Pi Camera Module 3/V1/V2/HQ,  to extend the camera over the long cables while keeping the high-speed CSI signals away from noise and interference.

By using a high-speed HDMI cable, the camera can run up to 3~5 meters, which high extends the usage of the Raspberry Pi cameras.

In addition to extend the camera signal, the adapter boar provides another 3 signals to be extend with the camera signals together via the headphone jack connector.

It can be used to extend standard audio signals, GPIO signals or other sensor signals according to users need.

If you need a longer and stronger cable with solid connections, it is right thing for you.



Features

  • Supported NVIDIA Jetson Nano and Raspberry Pi 4B, Pi 3B+, Pi 3B, Pi 2, Model A/B/B+, Pi Zero

  • Supported for Raspberry Pi Camera Module 3(12MP IMX708), Raspberry Pi HQ Camera (12MP IMX477), Raspberry Pi camera V1 (5MP OV5647) and raspberry pi camera V2 (8MP IMX219)

  • No extra software/configuration is needed.

  • HDMI cables can be up to 3~5 meters.

  • Reserved microphone and headphone jack for audio or GPIO signals

  • Three additional solder pads are available (same signals as headphone jack)

  • Size:27.63 x 25.00mm

Documentation

Note

  • Please be sure to use a high-quality HDMI cable, which allows the camera to run 3-5 meters, greatly extending the usage of the Pi camera.

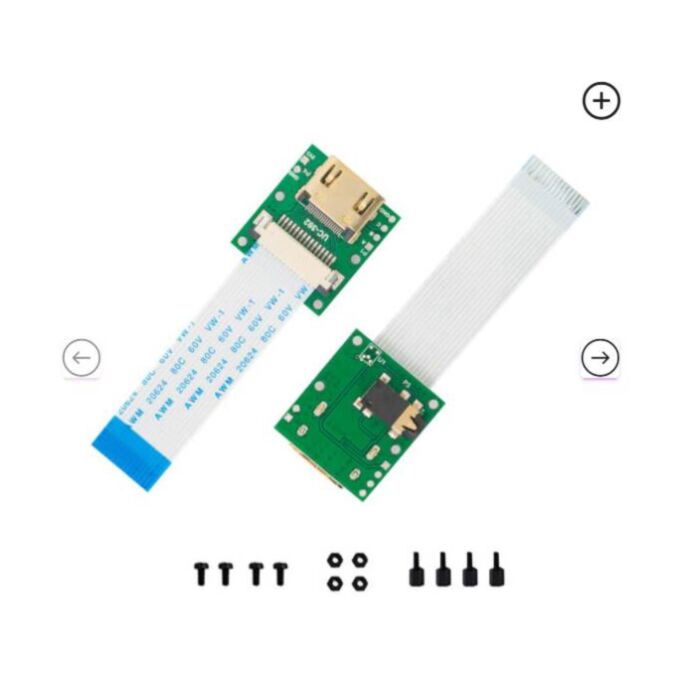

Package Includes

  • 2pcs Arducam CSI to HDMI Cable Extension Module
  • 2pcs 60mm 15pin FPC cable
  • 4sets M2 screw
