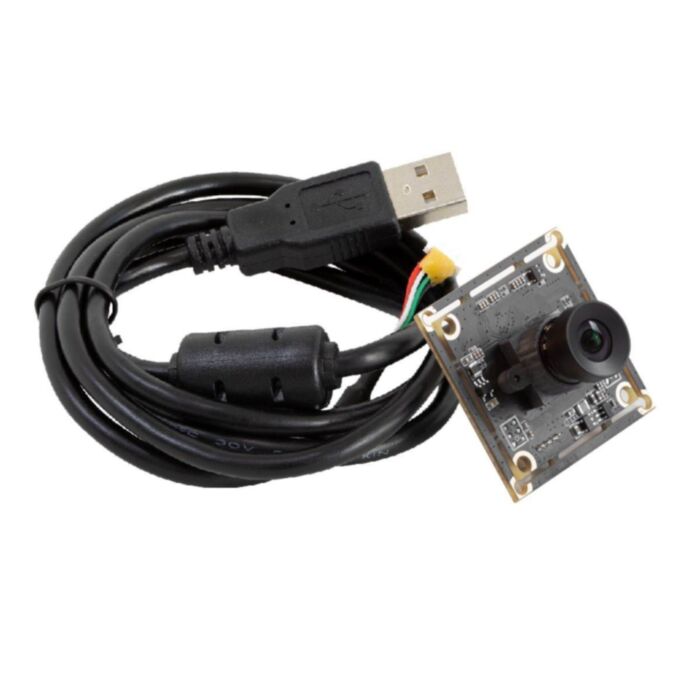

2MP AR0230 WDR USB Camera Module Manual Focus M12 Lens

SKU: AC-B0438 Brand: Arducam

Capture clear, balanced footage in high-contrast lighting. This camera features the AR0230 sensor, which provides a reliable 105dB dynamic range and a manual focus M12 lens.

$98.95 AUD, inc GST

$89.95 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 24 and Feb 27

A high-performance imaging solution designed for precision vision tasks in challenging lighting environments. Built around the ON Semi AR0230 CMOS sensor, this module provides 1080p high-definition video via a driverless UVC-compliant USB 2.0 interface, making it an ideal drop-in component for embedded systems and desktop applications alike.

Standard camera modules often struggle with "blown-out" highlights or losing detail in deep shadows, which can cause facial recognition or object detection algorithms to fail. This module solves that specific pain point by utilizing Wide Dynamic Range (WDR) technology, allowing it to capture clear, balanced frames even when pointing directly toward bright windows or high-contrast outdoor scenes.

Core Features

Maintain crystal-clear visibility in high-contrast environments with a 105dB Wide Dynamic Range that prevents silhouettes and overexposure in backlit scenes.
Achieve sharp, detailed imagery at any distance using the manual focus M12 lens, which allows for precise adjustment compared to fixed-focus alternatives.
Stream high-definition video without lag thanks to support for H.264 compression, ensuring smooth 30fps performance at 1080p even on systems with limited bandwidth.
Deploy instantly across multiple platforms with UVC (USB Video Class) compliance, requiring no proprietary drivers for Raspberry Pi, Jetson Nano, or standard PCs.

Specifications

Property	Specification
Sensor	1/2.7” ON Semi AR0230 CMOS
Resolution	2.0 Megapixel (1920 x 1080)
Dynamic Range	Up to 105 dB (WDR)
Video Output Formats	MJPG, YUY2, H.264
Frame Rate (1080p)	30fps (MJPG/H.264), 5fps (YUY2)
Lens Mount	M12 (Interchangeable)
Field of View (FOV)	95° (Horizontal)
Minimum Illumination	0.01 Lux
Interface	USB 2.0 High Speed (UVC)
Dimensions	32mm x 32mm (PCB)
Operating Temperature	-20°C to 70°C
Power Supply	DC 5V via USB
