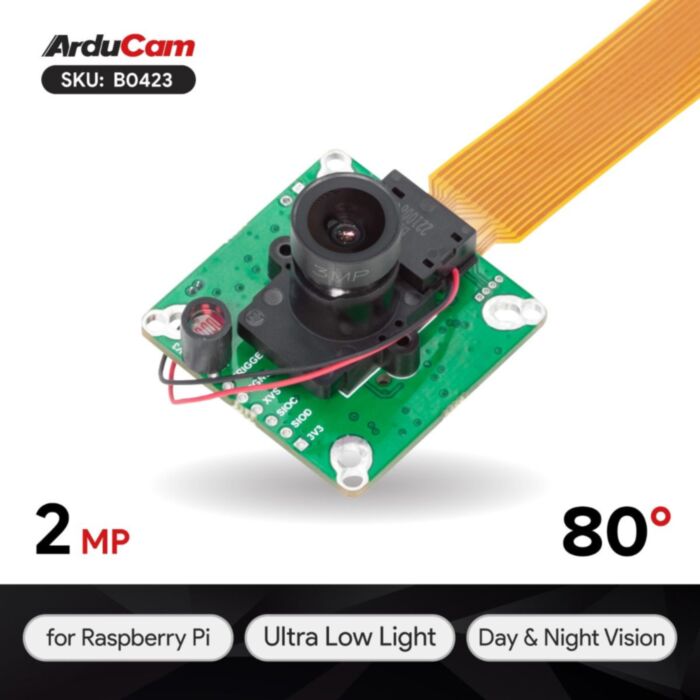

Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera

SKU: AC-B0423 Brand: Arducam
place
$104.95 AUD, inc GST
$95.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 5-10 $91.59 (exc GST)
  • 10+ $88.73 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Arducam 2MP IMX462 Motorized IR-CUT Camera is capable of capturing visible and near-infrared images with very low noise even in extremely low-light conditions or no light (near 0 lux). This high-speed camera captures uncompressed Full HD images at 50fps at full resolution. This is great for minimizing inter-frame distortion and reducing motion blur, resulting in sharper images with more scene detail when capturing moving objects. High sensitivity, low dark current and no smear can be achieved through the adoption of R, G and B primary color mosaic filters.

Applications

  • Surveillance cameras
  • FA cameras
  • Industrial cameras
  • Autonomous mobile robots, UGV/UAV, ADAS, etc.

Features

  • Input frequency: 74.25 MHz / 37.125 MHz
  • Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
  • Maximum frame rate in Full HD 1080p mode: 30 fps
  • High Dynamic Range (HDR) function: Multiple exposure HDR, Digital Overlay HDR
  • 10-bit/12-bit A/D converter
  • CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output

Specifications

SENSOR SONY STARVIS IMX462
Optical Size Type 1/2.8'' (Diagonal 6.46 mm)
Pixel Size 2.9μm×2.9μm
Shutter Type Rolling Shutter
Number of the Active Pixels 1920x1080
Color Filter Bayer RGB
Frame Rates RAW10:1920x1080@46fps;1280x720@90fps
RAW12:1920x1080@46fps;1280x720@90fps
Supported Platform Pi 4/3/Zero/CM3/CM4
Output Format RAW10/RAW12
Focus Type Manual Focus
Lens Mount M12 Mount
F.NO 1.6±10%
Effective Focal Length 4.3±5%mm
MOD. 2.0
Back Focal Length 5.43±0.2mm
Field of View(FOV) 80°H
IR Sensitivity Motorized IR-cut
Camera Board Size 38mm x 38mm

Package Including

  • 1 x IMX462 Motorized IR-CUT Camera Module
  • 1 x 150mm 15pin to 22pin flex cable

Notes

  • This product uses an interchangeable M12 lens

Documentation
