Gravity: AI Visual Gesture and Human Presence Tracking Sensor (5 Gestures, Range 3m)

SKU: SEN0626 Brand: DFRobot
Enhance smart automation with AI-powered gesture recognition & human presence tracking. Ideal for touch-free control in homes, public displays &...
$29.97 AUD, inc GST
$27.25 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 28 and May 01

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

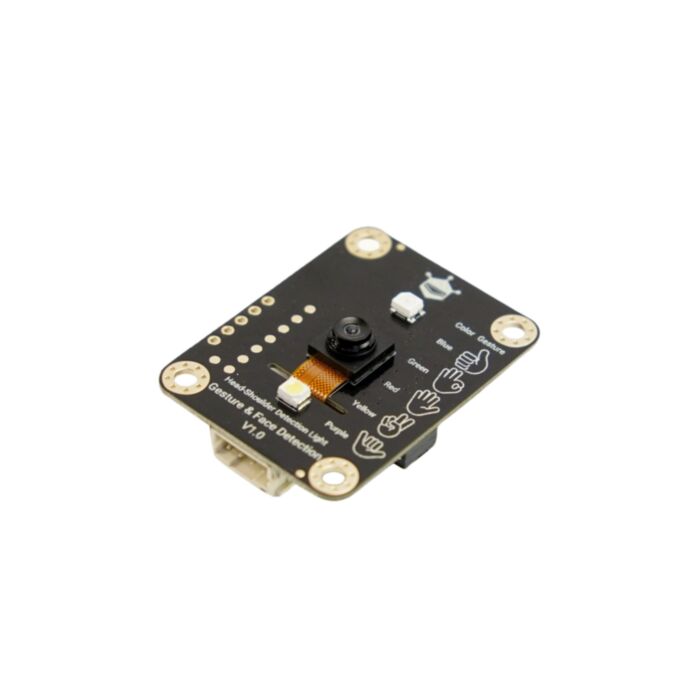

The AI Visual Gesture and Human Presence Tracking Sensor is a high-performance, offline AI recognition module designed for non-contact interaction. Featuring advanced gesture recognition and head-and-shoulder detection, it identifies up to five distinct gestures and senses human presence within a range of 3 meters. Compatible with Arduino, Raspberry Pi, and IoT ecosystems, it enables seamless, touch-free control in hygiene-sensitive environments, high-noise scenarios, and smart automation systems.

AI Visual Gesture and Human Presence Tracking Sensor can detects 5 distinct gestures

Figure: Detects Five Distinct Gestures

Advanced AI-Powered Gesture Recognition

The sensor accurately recognizes 5 predefined gestures at distances up to 3 meters, enabling intuitive and contact-free interaction. Ideal for applications such as non-contact device operation, smart home control, and interactive public displays.Human Presence and Motion DetectionWith built-in head-and-shoulder detection, the sensor identifies human presence and movement in its field of view. It outputs the number and coordinates of detected upper-body targets, allowing smart devices like fans or lighting systems to dynamically respond to user location—enhancing automation and energy efficiency. Versatile Integration and Seamless ConnectivitySupporting both I2C and UART communication, the sensor integrates easily with various embedded platforms. Operating at 3.3V–5V, it is also compatible with graphical programming platforms such as MakeCode and Mind+, simplifying development and deployment.

Specification

Electrical Specifications

  • Operating Voltage: 3.3V – 5V
  • Logic Level Voltage: 3.3V
  • Current Consumption: 100mA
  • Communication & Interface

  • Connector Type: PH2.0-4P / 2.54mm pin header
  • Communication Protocols: I2C / UART
  • I2C Address: 0x72
  • Default UART Baud Rate: 9600bps
  • UART Protocol: Modbus
  • Interrupt Output: 2.54mm pin header
  • Recognition Capabilities

  • Supported Gesture Types (5):
           Thumbs up
           Extend the middle, ring, and little fingers
           Open palm facing outward
           Extend the index and middle fingers
           Extend the thumb and little finger
  • Maximum Recognizable Faces & Head-Shoulder Count: 10
  • Detection Area for Face & Shoulders: Recognizes upper-body presence within camera range
  • Face Recognition Confidence Score: 0 – 100
  • Position Coordinate Output: Supported
  • Gesture Recognition Distance: 0.5m – 3m
  • Face Recognition Distance: 0.5m – 3m
  • Camera Field of View (FoV): 85° (diagonal)
  • Camera Focal Length: 1.56mm
  • Visual Indicators

  • Gesture Recognition RGB Indicator:
           Blue: Thumbs up
           Green: Extend the middle, ring, and little fingers
           Red: Open palm outward
           Yellow: Extend the index and middle fingers
           Purple: Extend the thumb and little finger
  • Presence Detection LED: Illuminates when a person is detected, turns off when no presence is detected
  • Mechanical Dimensions

  • PCB Dimensions: 42mm × 32mm
  • Mounting Hole Spacing: 25mm × 35mm
  • Mounting Hole Diameter: 3.1mm
  • Documents

  • Product wiki
  • Arduino Tutorial
  • Mind+ (Based on Scratch3.0) Graphical Programming
  • Makecode Tutorial
  • 2D CAD
  • 2D DXF
  • 3D STP
