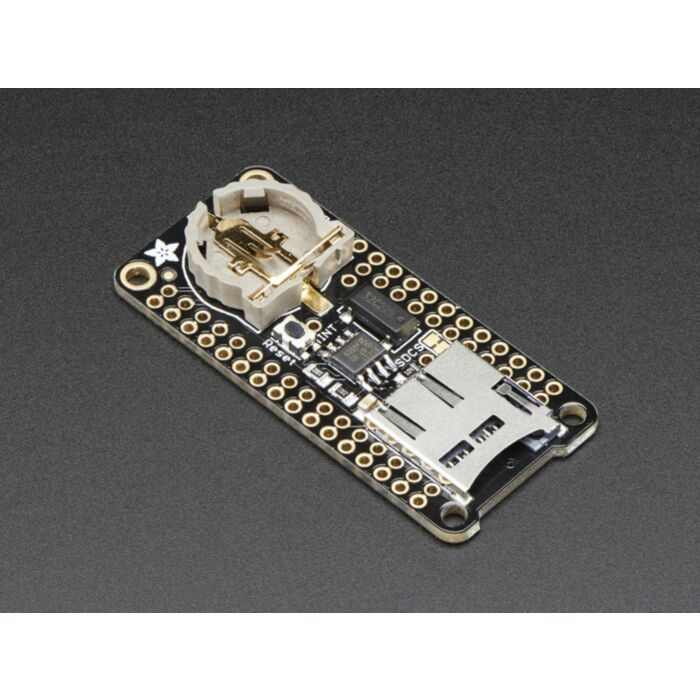

Adalogger FeatherWing - RTC + SD Add-on For All Feather Boards

Rating:

100% of 100

SKU: ADA2922 Brand: Adafruit

A Feather board without ambition is a Feather board without FeatherWings! This is the Adalogger FeatherWing: it adds both a battery-backed Real Time Clock and micro...

$17.75 AUD, inc GST

$16.14 AUD, exc GST

Quantity Discounts:

10-25 $15.49 (exc GST)
25+ $15.01 (exc GST)

Out of Stock

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

A Feather board without ambition is a Feather board without FeatherWings! This is the Adalogger FeatherWing: it adds both a battery-backed Real Time Clock and micro SD card storage to any Feather main board. Using Adafruit's Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight!

Check out Adafruit's range of Feather boards here.

This FeatherWing will make it real easy to add datalogging to any of Adafruit's existing Feathers. You get both an I2C real time clock (PCF8523) with 32KHz crystal and battery backup, and a microSD socket that connects to the SPI port pins (+ extra pin for CS). Tested and works great with any of our Feathers, based on ATmega32u4, ATSAMD21, or ESP8266.

Adafruit recommend the Arduino's default SD library to talk to the microSD card socket. On ESP8266, the SD CS pin is on GPIO 15, on Atmel M0 or 32u4 it's on GPIO 10. You can cut the trace to the default pin and change this to any pin. To use the RTC, use Adafruit's RTClib library. If you need a precision RTC, check out Adafruit's DS3231 FeatherWing

Does not come with a micro SD card. A CR1220 coin cell is required to use the RTC battery-backup capabilities! Adafruit don't include one by default, to make shipping easier for those abroad, but we do stock them so pick one up or use any CR1220 you have handy. If you're not using the RTC part of the FeatherWing, a battery is not required.

Adafruit's full tutorial has more information including diagrams, example code, pinouts, and more!

Technical Details

50.8mm x 22.9mm x 1.6mm / 2" x 0.9" x 0.06"
Weight: 5.1g
Datasheets, EagleCAD PCB files, Fritzing objects, and more available in the tutorial
