Adafruit Particle/Spark NeoPixel Ring Kit - 24 NeoPixels
Retired Product

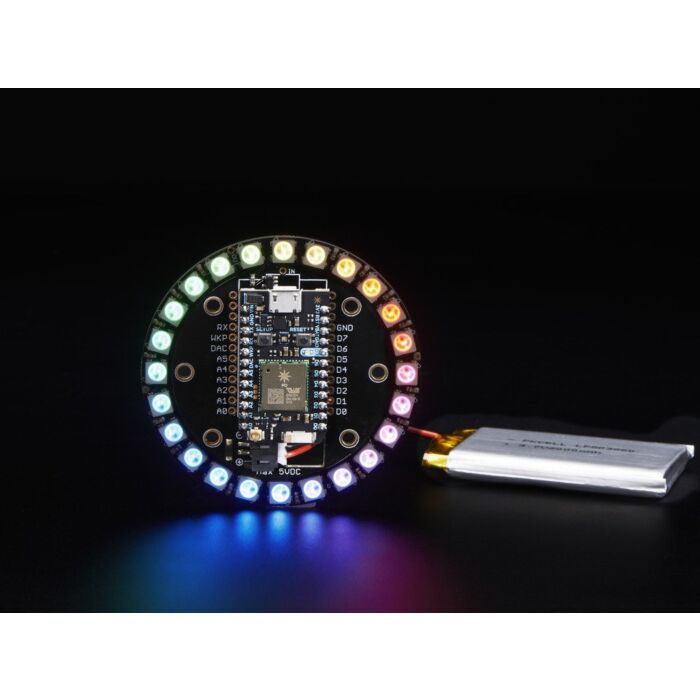

Search for an alternativeAdd some dazzle to your Spark Core or Photon with this custom-made NeoPixel ring kit! 24 ultra bright smart LED NeoPixels are arranged in a circle with 2.6" (66mm) outer diameter. Snap in your Spark and upload the NeoPixel library code to light up the LEDs, make an Internet of Blinky! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with about 3.5-5.5 VDC battery pack and you're ready to rock.
To make your project portable, Adafruit have a JST connector for attaching an external battery. Power with 3.5 - 5.5V DC, a rechargeable LiPoly or LiIon cell battery works great, or 3xAAA or 3xAA battery pack. The JST included is so you can make your own battery connection. Use pin D6 for the NeoPixel library code, all other pins are availale to use and have two breakouts on either side so you can wire up other sensors or devices.
Comes as a single round PCB with 24 individually addressable RGB LEDs assembled and tested, two 12 pin 0.1" socket headers and a bonus JST cable. Some light soldering is required, you can solder the two sockets in place to allow unplugging of the Spark, or just solder it directly in place for a slimmer look.
Please Note: Particle (Spark) Core/Photon and Battery not included (but we do have them in the shop!)
Technical Details
- WS2812 Datasheet
- SK6812 Datasheet
- May ship with either WS2812B or SK6812-based LEDs. They are the same brightness, color and protocol
- EagleCAD PCB files available on GitHub
- Fritzing object in Adafruit Fritzing library
- Diameter: 65.6mm / 2.6"
Product Weight: 14.2g / 0.5oz
