ScoutMakes DRV5032 Digital Magnetic Hall Effect Sensor

SKU: ADA6051 Brand: Adafruit

This is a breakout for the Texas Instruments DRV5032 Digital Magnetic Hall Effect Sensor. It is the perfect way to add magnetic sensing to your project....

$12.15 AUD, inc GST

$11.05 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 10 and Apr 14

Quantity Discounts:

10+ $10.60 (exc GST)
25+ $10.27 (exc GST)

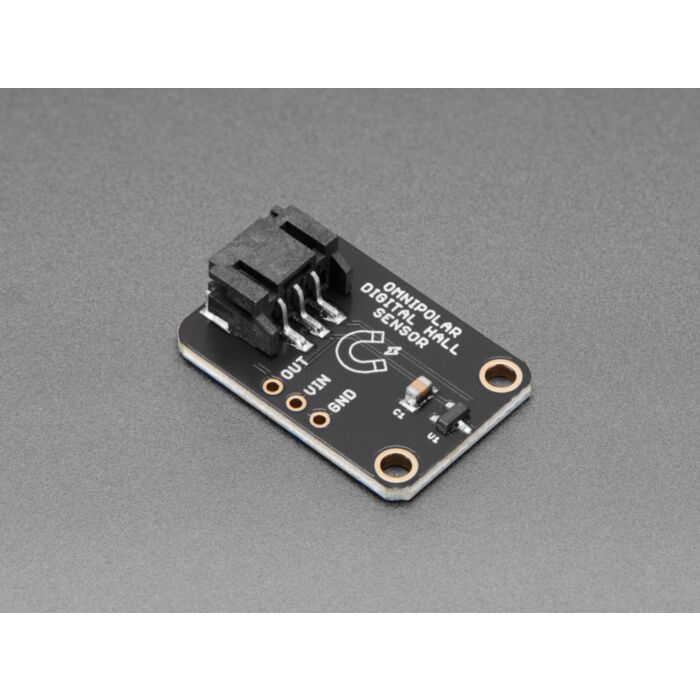

This is a breakout for the Texas Instruments DRV5032 Digital Magnetic Hall Effect Sensor. It is the perfect way to add magnetic sensing to your project. The sensor has a digital output that indicates when the magnetic flux density threshold has been crossed. The device integrates a Hall effect element, analog signal conditioning, and a low-frequency oscillator that enables ultra-low average power consumption. By operating from a 1.65-V to 5.5-V supply, the device periodically measures magnetic flux density, updates the output, and enters a low-power sleep state.

The breakout comes with a 3-pin header for breadboard use. This board has a simple plug-and-play JST PH (2mm pitch) 3-pin input connector for solderless use. This cable is sold separately but is not needed to use the board.

Technical Details

Product Dimensions: 25.6mm x 17.8mm x 7.2mm

Product Weight: 1.9g

Documents

This product is listed in:

Sensors>Magnetic
