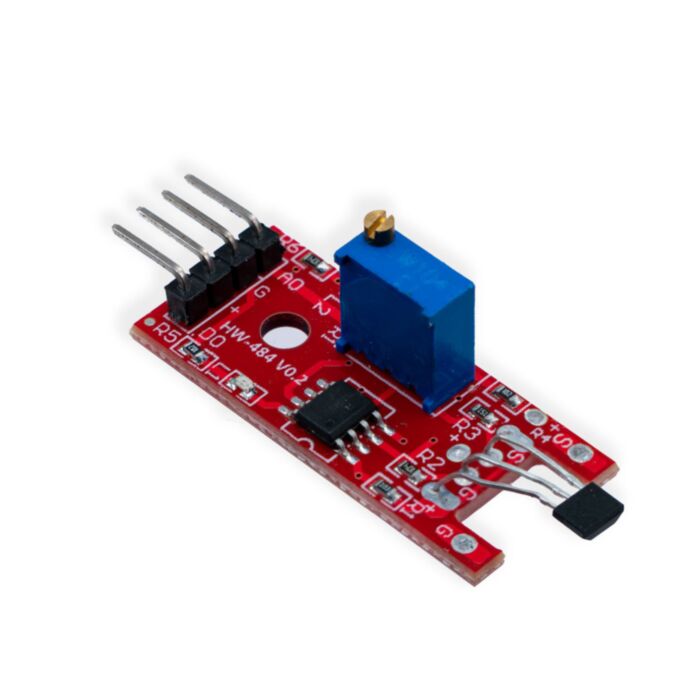

Hall effect sensor (analog,threshold)

Sense invisible magnetic fields around you! Use the adjustable digital output to set a threshold or the analog output to get a gauge of the distance.

$1.90 AUD, inc GST

$1.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

5-15 $1.69 (exc GST)
15+ $1.65 (exc GST)

Recommended Essentials:

Magnet Square - 0.125"

$1.75

Sense invisible magnetic fields around you! Use the adjustable digital output to set a threshold or the analog output to get a gauge of how far away a magnet is or sense ambient fields around you!

Pair with a small cube magnet to make a puzzle box or a simple short-distance range sensor.

Specifications

Voltage input: 2.7-6.5V
Onboard LED for power and going over the adjustable threshold

Examples

Raspberry Pi Pico - Micropython

from machine import ADC, Pin
import time

a0 = ADC(Pin(27))  # Create an ADC object on pin 26 (ADC0)
d0 = Pin(22, Pin.IN, Pin.PULL_UP)  # Digital output from sensor

while True:
    reading = a0.read_u16()  # Read the value from the analog interface
    print("Sensor reading:", reading)

    threshold_exceeded = d0.value()  # Read the value from the digital interface
    if threshold_exceeded:
        print("Threshold exceeded!")

    time.sleep_ms(500)  # Wait for half a second before reading again
