Adafruit RP2040 CAN Bus Feather with MCP2515 CAN Controller - STEMMA QT

SKU: ADA5724 Brand: Adafruit

If you'd like quickly get started with CAN bus interfacing, with no soldering required, our Adafruit RP2040 CAN Bus Feather comes ready-to-rock with a...

$39.30 AUD, inc GST

$35.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $34.65 (exc GST)
25+ $33.94 (exc GST)

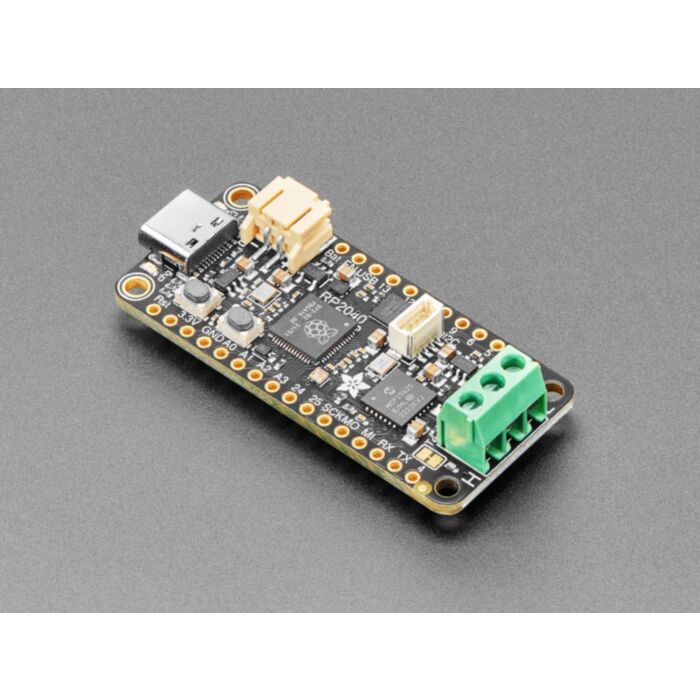

If you'd like quickly get started with CAN bus interfacing, with no soldering required, our Adafruit RP2040 CAN Bus Feather comes ready-to-rock with a microcontroller, CAN chipset and terminal blocks for instant gratification. The controller used is the MCP26525 (aka a MCP2515 with built-in transciever), an extremely popular and well-supported chipset that has drivers in Arduino and CircuitPython and only requires an SPI port and two pins for chip-select and IRQ. Use it to send and receive messages in either standard or extended format at up to 1 Mbps.

Feather is the development board specification from Adafruit, and like its namesake, it is thin, light, and lets you fly! Adafruit designed Feather to be a new standard for portable microcontroller cores. Adafruit have other boards in the Feather family, check'em out here.

CAN Bus is a small-scale networking standard, originally designed for cars and, yes, busses, but is now used for many robotics or sensor networks that need better range and addressing than I2C and don't have the pins or computational ability to talk on Ethernet. CAN is 2 wire differential, which means it's good for long distances and noisy environments.

Messages are sent at about 1Mbps rate - you set the frequency for the bus and then all 'joiners' must match it, and have an address before the packet so that each node can listen in to messages just for it. New nodes can be attached easily because they just need to connect to the two data lines anywhere in the shared net. Each CAN device sends messages whenever it wants, and thanks to some clever data encoding, can detect if there's a message collision and retransmit later.

Adafruit have added a few nice extras to this Feather to make it useful in many common CAN scenarios:

5V charge-pump voltage generator, so even though you are running 3.3V on a Feather board, it will generate a nice clean 5V as required by the interal transceiver.
3.5mm soldered terminal block quick access to the High and Low data lines as well as a ground pin, without any soldering.
120-ohm termination resistor on board, you can remove the termination easily by cutting the jumper marked TERM on the top of the board.
CAN control CS, Reset, Int, standby pins connected internally so you can use any FeatherWing without pin conflicts.

At the Feather's heart is an RP2040 chip, clocked at 133 MHz and at 3.3V logic, the same one used in the Raspberry Pi Pico. This chip has a whopping 8 MB of onboard QSPI FLASH and 264K of RAM! There's even room left over for a STEMMA QT connector for plug-and-play of I2C devices.

To make it easy to use for portable projects, Adafruit added a connector for any of Adafruit's 3.7V Lithium polymer batteries and built-in battery charging. You don't need a battery, it will run just fine straight from the USB Type C connector. But, if you do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch over to USB power when it's available.

Here're some handy specs! You get:

Measures 2.0" x 0.9" x 0.28" (50.8mm x 22.8mm x 7mm) without headers soldered in
Light as a (large?) feather - 6.3 grams
RP2040 32-bit Cortex M0+ dual core running at ~133 MHz @ 3.3V logic and power
264 KB RAM
8 MB SPI FLASH chip for storing files, images and CircuitPython/MicroPython code storage. No EEPROM
Tons of GPIO! 21 x GPIO pins with following capabilities:
- Four 12-bit ADCs (one more than Pico)
- Two I2C, Two SPI, and two UART peripherals, Adafruit label one for the 'main' interface in standard Feather locations
- 16 x PWM outputs - for servos, LEDs, etc
Built-in 200mA+ lipoly charger with charging status indicator LED
Pin #13 red LED for general purpose blinking
RGB NeoPixel for full-color indication.
On-board STEMMA QT connector that lets you quickly connect any Qwiic, STEMMA QT or Grove I2C devices with no soldering!
Both Reset button and Bootloader select button for quick restarts (no unplugging-replugging to relaunch code)
USB Type C connector lets you access built-in ROM USB bootloader and serial port debugging
3.3V regulator with 500mA peak current output and power enable pin
4 mounting holes
12 MHz crystal for perfect timing.
Support circuitry for CAN Bus using SPI interface

Comes assembled and tested, with some header. You'll need a soldering iron to attach the header for installing onto your Feather. Stacking headers will let you put another FeatherWing on top.

Technical Details

Product Dimensions: 52.2mm x 22.8mm x 12.0mm / 2.1" x 0.9" x 0.5"

Product Weight: 6.5g / 0.2oz
