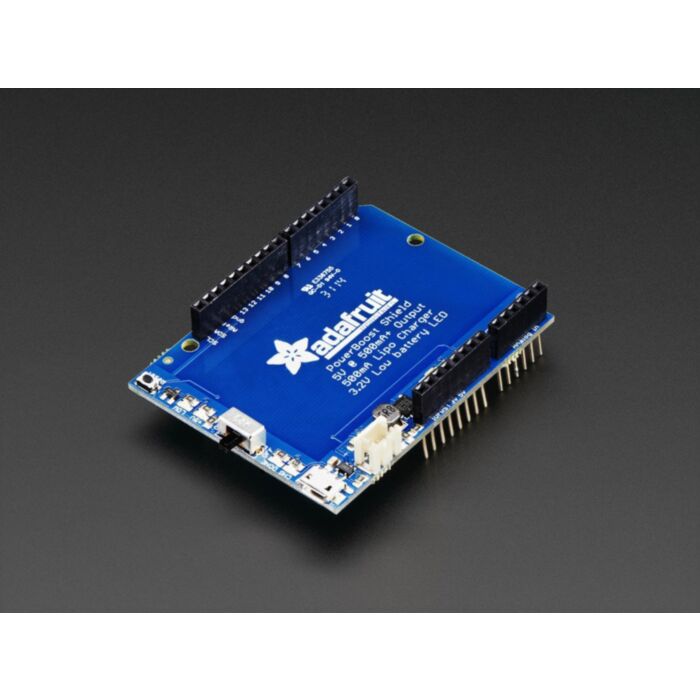

Adafruit PowerBoost 500 Shield - Rechargeable 5V Power Shield

Rating:

100% of 100

SKU: ADA2078 Brand: Adafruit

What's a project if it's trapped on your desk? Now you can take your Arduino anywhere you wish with the PowerBoost shield! This stackable shield goes onto your Arduino...

$42.55 AUD, inc GST

$38.68 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and Apr 30

Quantity Discounts:

10-25 $37.14 (exc GST)
25+ $35.97 (exc GST)

Recommended Essentials:

Polymer Lithium Ion Battery (LiPo) 3.7V 1100mAh

$15.35

What's a project if it's trapped on your desk? Now you can take your Arduino anywhere you wish with the PowerBoost shield! This stackable shield goes onto your Arduino and provides a slim rechargeable power pack, with a built in battery charger as well as DC/DC booster.

Compatible with Arduino Uno, Duemilanove, Mega, Leonardo and Due - basically any Arduino-pinout-shaped Arduino as only the GND and 5V pins are used. You can stack shields on top, or stack the PowerBoost on top. Please note that the powerboost does not pass through the ICSP headers (the battery is in the way) so if your stacking shield uses ICSP for data transfer (like the Ethernet Shield), you'll need to stack the PowerBoost above it!

The PowerBoost shield can run off of any Lithium Ion or Lithium Polymer battery (3.7/4.2V kind) but We suggest our 1100mAh capacity cell which fits very nicely in the empty space of the shield. Plug in the battery and recharge it via the microUSB jack. When you're ready to go, just unplug the Arduino from USB or the wall adapter and it will automatically switch over to shield power. Use only Lipoly batteries with protection circuitry!

The onboard boost converter can provide at least 500mA current, and can peak at 1A. There's an onboard fuse to protect against higher current draws which could damage the boost converter or battery. The boost converter can be damaged by high current spikes and is not recommended for driving motors or robots where the stall current can cause high current spikes

The shield comes as a kit of parts, some light soldering is required to attach the stacking headers and switch! Battery is not included, but you can pick one up in the shop (again, we suggest our 1100mAh battery) There's even an optional switch. If you choose to solder it in, it will let you turn the shield and Arduino power on/off.

Our minimum recommended capacity of this PowerBoost 500 is 1000mAh due to the potential current draw on the cell when running your board with peripherals, although be sure to check your battery specifications are suitable first.

Technical Details

Dimensions: 53mm x 69mm x 2mm / 2.1" x 2.7" x 0.08"
Height w/ JST: 8mm / 0.3"
Weight: 12.5g
Maximum single cell LiPo cell dimensions: Approx 36 x 50mm

Datasheets, Fritzing objects, EagleCAD PCB files and more in the tutorial
