Adafruit PiUART - USB Console and Power Add-on for Raspberry Pi

SKU: ADA3589 Brand: Adafruit

Here's another super handy add-on for your Raspberry Pi computer, perfect for 'head-less' setups! The PiUART adds a MicroUSB to serial connection so you can use...

$13.85 AUD, inc GST

$12.59 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 12 and Feb 17

Quantity Discounts:

10-25 $12.09 (exc GST)
25+ $11.71 (exc GST)

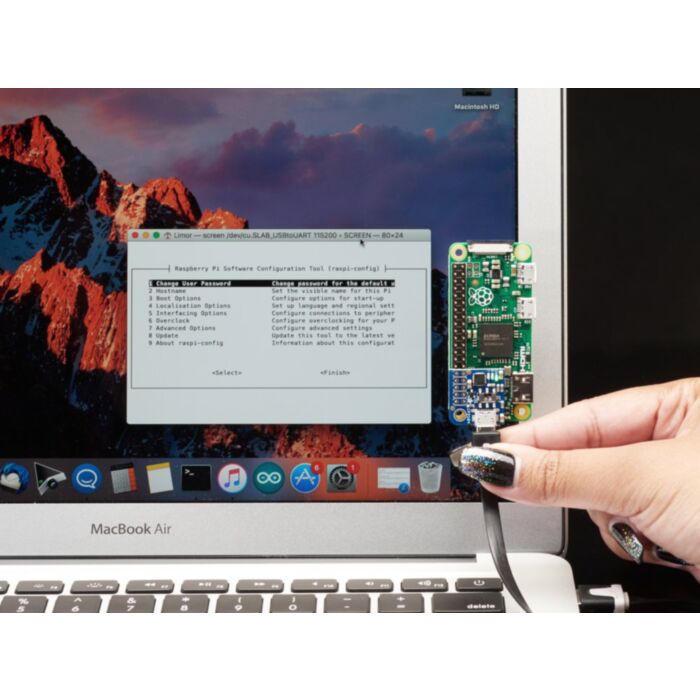

Here's another super handy add-on for your Raspberry Pi computer, perfect for 'head-less' setups! The PiUART adds a MicroUSB to serial connection so you can use any serial port software to connect to the Pi's console. It plugs in and is fast and easy to add whenever you need to connect to your Pi. Two LEDs connect to RX and TX on the serial converter chip so you get blinking whenever data is sent or received.

Adafruit had some space left over, so the PiUART also comes with an on-off switch with a 4 Amp transistor. You can power your Pi through the microUSB port and then use the switch whenever you want to cut power, without having to unplug the cable. Low-power usage Pi's like the Pi Zero and A+ can thus be powered and controlled from a single cable connected to your computer. Heavy-hitter Pi's like the Pi 2 and Pi 3 may draw too much power from a computer USB port, so check if your motherboard has a high-current USB port before trying.

Comes fully assembled and ready to go, plug into your Pi, and on Mac OS X install the driver - within 2 minutes and you'll be ready to go.

Works with any Raspberry Pi computer (Pi 1, 2, 3, Zero, etc)

Technical Details

Product Dimensions: 21.0mm x 20.0mm x 8.0mm / 0.8" x 0.8" x 0.3"

Product Weight: 2.2g / 0.1oz
