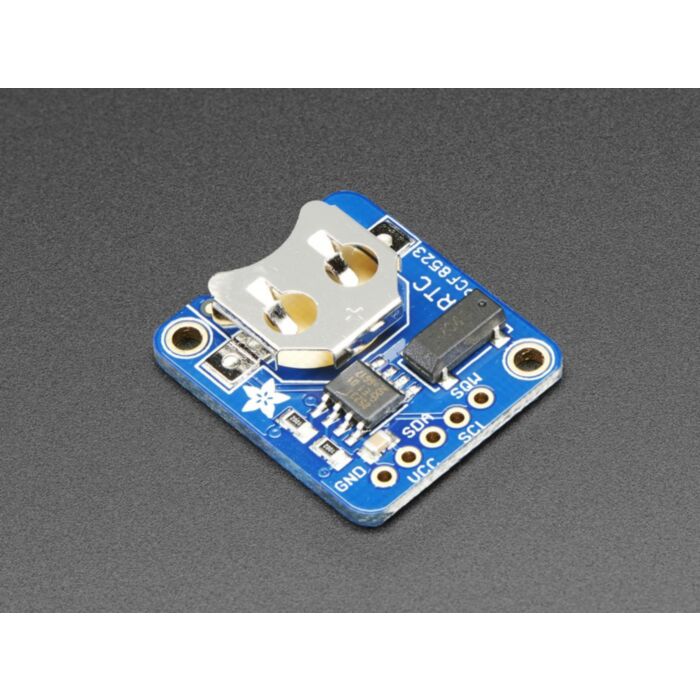

Adafruit PCF8523 Real Time Clock Assembled Breakout Board

Rating:

100% of 100

SKU: ADA3295 Brand: Adafruit

This is a great battery-backed real time clock (RTC) that allows your microcontroller project to keep track of time even if it is reprogrammed, or if the power is...

$13.90 AUD, inc GST

$12.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

10-25 $12.13 (exc GST)
25+ $11.75 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Note: This product does not come with a CR1220 coin cell battery. We recommend one of these batteries if you're in need of a CR1220 for this RTC Module

This is a great battery-backed real-time clock (RTC) that allows your microcontroller project to keep track of time even if it is reprogrammed, or if the power is lost. Perfect for data logging, clock-building, time stamping, timers and alarms, etc. Equipped with PCF8523 RTC - it can run from 3.3V or 5V power logic!

Works great with an Arduino using Adafruit's RTC library or with a Raspberry Pi (or similar single board Linux computer)

PCB & header are included
Plugs into any breadboard or you can use wires
Two mounting holes
Will keep time for 5 years or more

The PCF8523 is simple and inexpensive but not a high precision device. It may lose or gain up to 2 seconds a day. For a high-precision, temperature compensated alternative, please check out the DS3231 precision RTC. If you need a DS1307 for compatibility reasons, check out Adafruit's DS1307 RTC breakout

Technical Details

Dimensions:

Length: 25.8mm/1.02in
Width: 21.8mm/0.86in
Height: 5mm/0.2in
Weight: 2.3g/0.09oz
Mounting holes are 2.2mm(0.086in) diameter, 25mm(0.98in) apart
This board/chip uses I2C 7-bit address 0x68
