Adafruit Mini Lipo w/Mini-B USB Jack - USB LiIon/LiPoly charger - v1

Rating:

90% of 100

SKU: ADA1905 Brand: Adafruit

Oh so handy, this little lipo charger is so small and easy to use you can keep it on your desk or mount it easily into any project! Simply plug it via any MiniUSB...

$13.50 AUD, inc GST

$12.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 22nd of Nov

Quantity Discounts:

10-25 $11.78 (exc GST)
25+ $11.42 (exc GST)

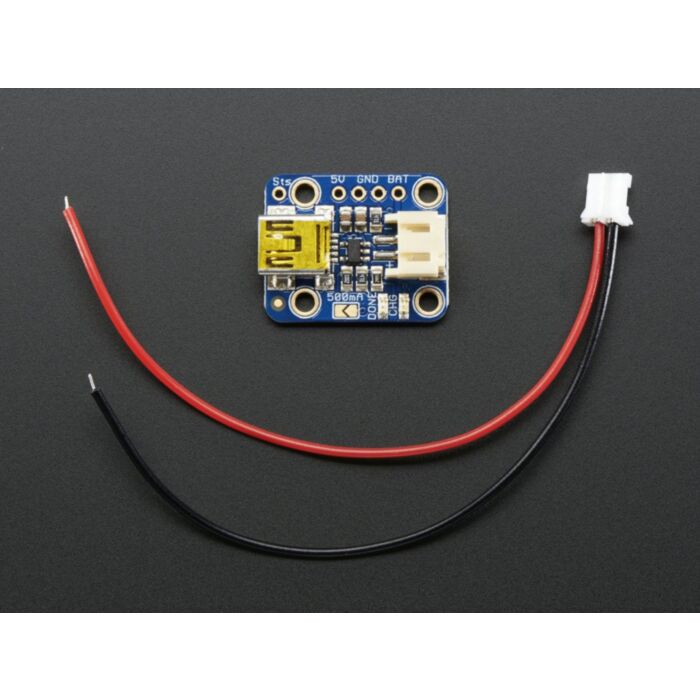

Oh so handy, this little lipo charger is so small and easy to use you can keep it on your desk or mount it easily into any project! Simply plug it via any MiniUSB cable into a USB port and a 3.7V/4.2V lithium polymer or lithium ion rechargeable battery into the JST plug on the other end. There are two LEDs - one red and one green. While charging, the red LED is lit. When the battery is fully charged and ready for use, the green LED turns on. Seriously, it could not get more easy.

Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped-up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the front, for when you'll only be charging batteries with 500mAh size or larger.

For use with Adafruit LiPoly/LiIon batteries only! Other batteries may have different voltage, chemistry, polarity or pinout.

Comes assembled and tested with a free bonus JST cable!
BAT pin connects directly to the positive JST connector pin if you wish to solder your battery directly to the board
5V input via Mini-B USB connector
For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
100mA charge current, adjustable to 500mA by soldering a jumper closed

Batteries not included.

Technical Details

Details:

Dimensions: 24mm x 19mm x 2mm / 0.9" x 0.7" x 0.08"
Height w/ JST: 7mm / 0.3"
Weight: 2.5g
Datasheets, PCB CAD files, and Fritzing objects available in the tutorial
