Adafruit Metro M7 with AirLift - Featuring NXP iMX RT1011

SKU: ADA4950 Brand: Adafruit

Get ready for our fastest Metro ever - the NXP iMX RT1011 microcontroller powers this board with a 500 MHz ARM Cortex M7 processor. There's 4 MB of execute-in-place QSPI for firmware + disk storage and 128KB of SRAM in-chip

$62.85 AUD, inc GST

$57.14 AUD, exc GST

Quantity Discounts:

6-12 $54.85 (exc GST)
12+ $53.14 (exc GST)

Out of Stock

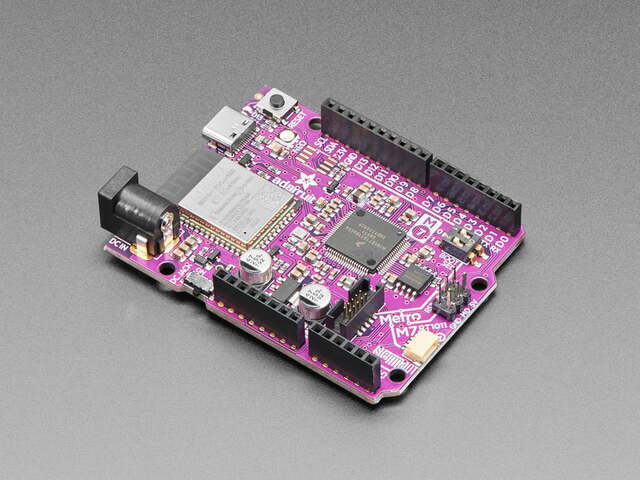

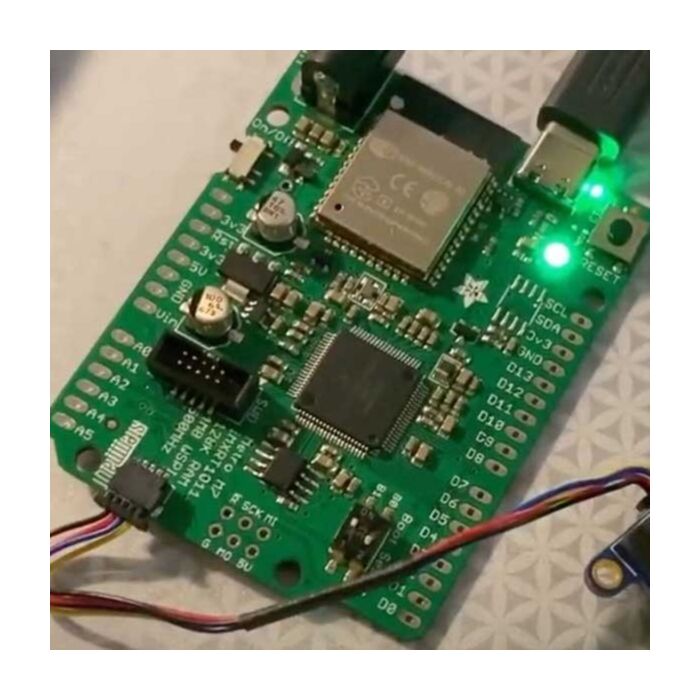

Get ready for Adafruit's fastest Metro ever - the NXP iMX RT1011 microcontroller powers this board with a 500 MHz ARM Cortex M7 processor. There's 8 MB of execute-in-place QSPI for firmware + disk storage and 128KB of SRAM in-chip, plus a WiFi co-processor using an on-board ESP32 module.

The iMX series of chips is the fastest microcontrollers around, with a Cortex M7 processor that is more powerful than the M0 or M4, and clock speeds of 500MHz+. For pure performance, there's nothing better! This chip family is well known for being featured in the Teensy 4 dev board series. Now Adafruit have a Metro-shaped board so you can use many Arduino shields, that is fully open source so you can adapt the design to create your own custom layouts, and a USB drag-n-drop bootloader plus CircuitPython support for easy development. Beginners and experts alike will enjoy the combination of low cost, roomy memory and storage, and no-soldering quick start.

Please note that this board does not have Arduino or Platform.io support. You can program it with CircuitPython, a fast-to-start embedded version of the popular Python programming language, or with MCU Xpresso IDE for C/C++ advanced embedded development.

Features

NXP iMX RT1011 processor - ARM Cortex M7 processor running at 500 MHz, with 128KB SRAM and high speed USB!
AirLift WiFi Co-processor, with TLS/SSL support, plenty of RAM for sockets, communication is over SPI and has CircuitPython library support ready to go for fast wireless integration.
8MB of QSPI XIP Flash
ESP32 WiFi co-processor - programmed with 'nina-fw' firmware as a SPI-to-Wireless
Power options - 6-12VDC barrel jack or USB type C
UNO-shape so shields can plug in
Reset button - Click to restart, double-click to enter UF2 bootloder
Boot-mode switches to get into the ROM bootloader (you can always reload code over USB if TinyUF2 gets corrupted somehow)
SWD connector for advanced debugging access.
On/Off switch
STEMMA QT connector for I2C devices
On/User LEDs + status NeoPixel
Works with CircuitPython!
53.2mm x 72mm / 2" x 2.8"
Height (w/ barrel jack): 14.8mm / 0.6"
Weight: 22.5g

Technical Details

Learn

Primary Guide: Adafruit Metro M7 1011 with AirLift

All aboard the Metro M7 1011!
