Adafruit EdgeBadge - TensorFlow Lite for Microcontrollers

Rating:

100% of 100

SKU: ADA4400 Brand: Adafruit

Machine learning has come to the 'edge' - small microcontrollers that can run a very miniature version of TensorFlow Lite to do ML computations. But you don't need...

$74.05 AUD, inc GST

$67.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6+ $64.63 (exc GST)
12+ $62.61 (exc GST)

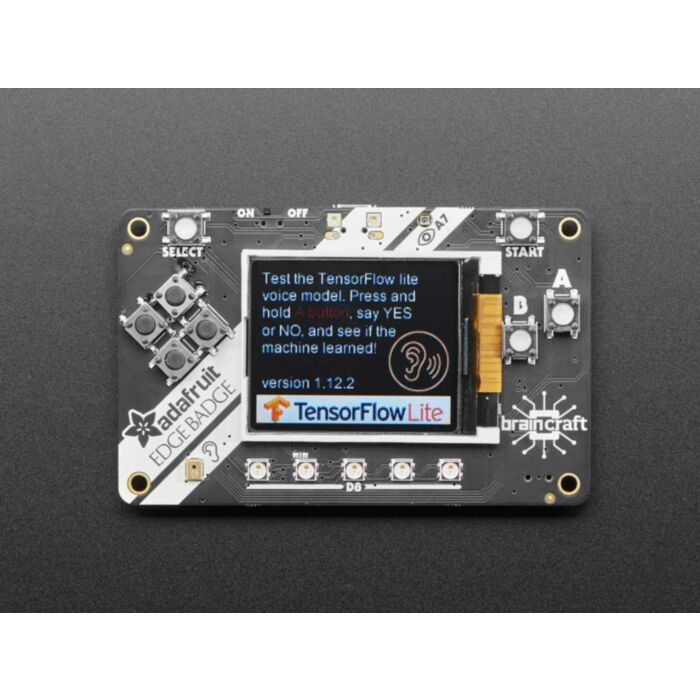

Machine learning has come to the 'edge' - small microcontrollers that can run a very miniature version of TensorFlow Lite to do ML computations.

But you don't need super complex hardware to start developing your own TensorFlow models! Adafruit have adapted Adafruit's popular PyBadge board to add a microphone so you can dip your toes into machine learning waters. It does everything that the PyBadge does, and as Adafruit make more projects that use Machine Learning we'll adapt this board to make it better and better for machine learning.

The EdgeBadge is a compact board - it's credit card sized. It's powered by Adafruit's favorite chip, the ATSAMD51, with 512KB of flash and 192KB of RAM. Adafruit add 2 MB of QSPI flash for file storage, handy for TensorFlow Lite files, images, fonts, sounds, or other assets.

Adafruit have added a PDM microphone on the front as an input for micro speech recognition. Adafruit's Arduino library has some demos you can get started with to recognize various word pairs like "yes/no", "up/down" and "cat/dog". TensorFlow Lite for microcontrollers is very cutting-edge so expect to see a lot of development happening in this area, with lots of code and process changes.

Here's a list of everything you get with the EdgeBadge. Since its a PyBadge+Microphone you can read a lot more about it on the product page

ATSAMD51J19 @ 120MHz with 3.3V logic/power - 512KB of FLASH + 192KB of RAM
2 MB of SPI Flash for storing images, sounds, animations, whatever!
1.8" 160x128 Color TFT Display connected to its own SPI port
8 x Game/Control Buttons with nice silicone button tops (these feel great)
5 x NeoPixels for badge dazzle, or game score-keeping
Triple-axis accelerometer (motion sensor)
Light sensor, reverse-mount so that it points out the front
Built in buzzer mini-speaker
Mono Class-D speaker driver for 4-8 ohm speakers, up to 2 Watts
LiPoly battery port with built in recharging capability
USB port for battery charging, programming and debugging
Two female header strips with Feather-compatible pinout so you can plug any FeatherWings in
JST ports for NeoPixels, sensor input, and I2C (you can fit I2C Grove connectors in here)
Reset button
On-Off switch

Technical Details

Product Dimensions: 86.3mm x 54.3mm x 13.6mm / 3.4" x 2.1" x 0.5"

Product Weight: 29.6g / 1.0oz
