Adafruit Bluefruit LE SPI Friend - Bluetooth Low Energy (BLE)

SKU: ADA2633 Brand: Adafruit
Would you like to add powerful and easy-to-use Bluetooth Low Energy to your robot, art or other electronics project? Heck yeah! With BLE now included in modern smart...
$34.50 AUD, inc GST
$31.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $30.11 (exc GST)
  • 25+ $29.16 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

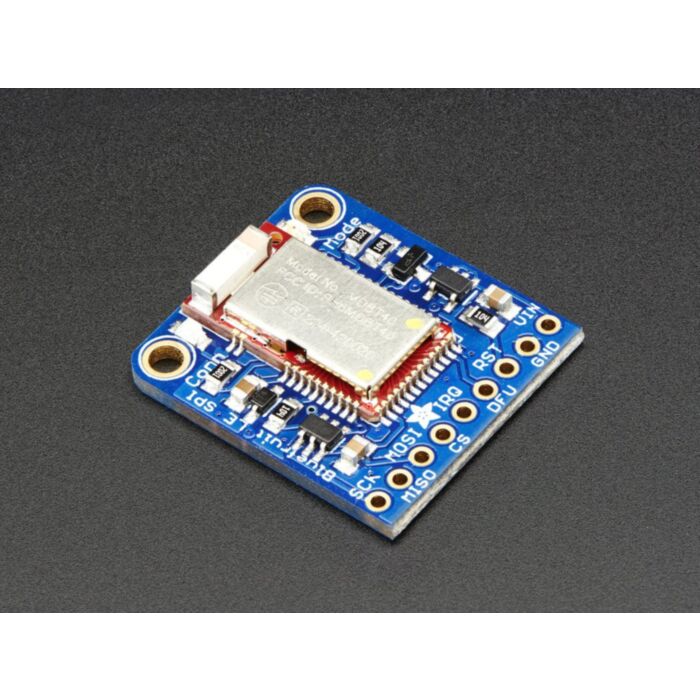

Would you like to add powerful and easy-to-use Bluetooth Low Energy to your robot, art or other electronics project? Heck yeah! With BLE now included in modern smart phones and tablets, its fun to add wireless connectivity. So what you really need is the new Adafruit Bluefruit LE SPI Friend!

The Bluefruit LE SPI Friend makes it easy to add Bluetooth Low Energy connectivity to anything with 4 or 5 GPIO pins. With SPI, you don't have to worry about baud rates, flow control, or giving up a hardware UART port. Connect to your Arduino or other microcontroller using the common four-pin SPI interface (MISO, MOSI, SCK and CS) plus a 5th GPIO pin for interrupts (to let the Arduino know when data or a response is ready).

This multi-function module can do quite a lot! For most people, they'll be very happy to use the standard Nordic UART RX/TX connection profile. In this profile, the Bluefruit acts as a data pipe, that can 'transparently' transmit back and forth from your iOS or Android device. You can use our iOS App or Android App, or write your own to communicate with the UART service.

If you aren't a fan of SPI communication, they also have a version that can talk UART

The board is capable of much more than just sending strings over the air!  Thanks to an easy to learn AT command set, you have full control over how the device behaves, including the ability to define and manipulate your own GATT Services and Characteristics, or change the way that the device advertises itself for other Bluetooth Low Energy devices to see. You can also use the AT commands  to query the die temperature, check the battery voltage, and more, check the connection RSSI or MAC address, and tons more. Really, way too long to list here!

Download Adafruit's free Android/iOS app and you're ready to rock!

Using Adafruit's Bluefruit iOS App or Android App, you can quickly get your project prototyped by using your iOS or Android phone/tablet as a controller. Adafruit have a color picker, quaternion/accelerometer/gyro/magnetometer or location (GPS), and an 8-button control game pad.

You can do a lot more too!

Why use Adafruit's Module?

There are plenty of BLE modules out there, with varying quality on the HW design as well as the firmware. So why should you go with this one?

One of the biggest advantages of the Adafruit Bluefruit LE family is that we wrote all of the firmware running on the devices ourselves from scratch. Adafruit control every line of code that runs on Adafruit's modules ... and so they aren't at the mercy of any third party vendors who may or may not be interested in keeping their code up to date or catering to Adafruit's customer's needs.

Because Adafruit control everything about the product, we add features that are important to our customers, can solve any issues that do come up without begging any 3rd parties, and Adafruit can even change Bluetooth SoCs entirely if the need ever arises!

Check out Adafruit's tutorial for all of the details that you can dream of!

Technical Details

  • ARM Cortex M0 core running at 16MHz
  • 256KB flash memory
  • 32KB SRAM
  • Transport: SPI at up to 4MHz clock speed
  • 5V-safe inputs (Arduino Uno friendly, etc.)
  • On-board 3.3V voltage regulation
  • Bootloader with support for safe OTA firmware updates
  • Easy AT command set tunneled over SPI protocol to get up and running quickly
  • 23mm x 26mm x 5mm / 0.9" x 1" x 0.2"
  • Weight: 3g

Datasheet, firmware files, CAD files, and Fritzing object available in the product tutorial
