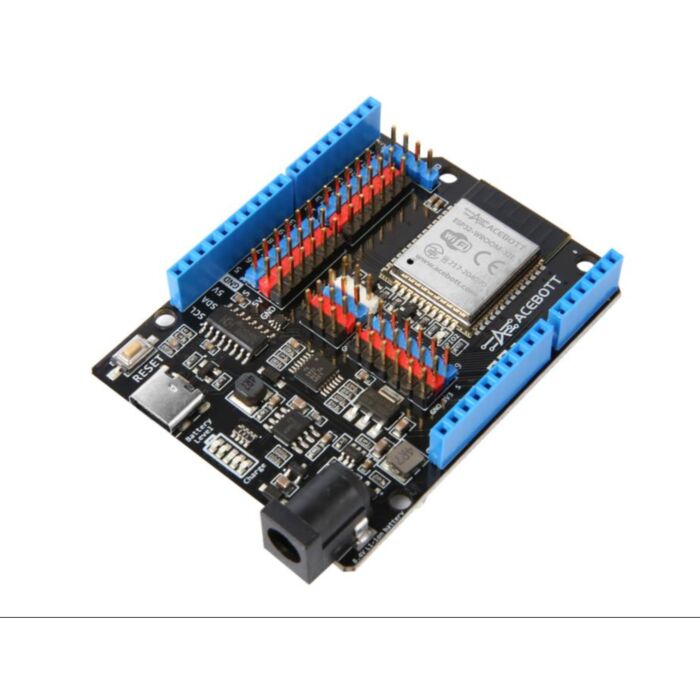

ACEBOTT ESP32 Max Controller Board v3.0

SKU: CE10167 Brand: ACEBOTT

The ESP32 Max V3.0 Development Board is a versatile and robust microcontroller platform designed for robot control and general prototyping.

$30.40 AUD, inc GST
$27.64 AUD, exc GST

Quantity Discounts:

  • 8+ $25.43 (exc GST)
  • 25+ $23.76 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Accelerate your next build with the ACEBOTT ESP32 PLUS Development Board. Featured in almost all of the ACEBOTT kits and robots.

A USB Type-C interface for programming, abundant I/O, and on-board battery charging streamline bench setup and portable projects alike.

Ideal for rapid prototyping and teaching labs, it offers clearly marked connections and familiar Arduino UNO R3 compatibility while exposing ADC, DAC, PWM, I2C, and SPI for sensor, control, and other general robotics/electronincs projects.

Technical Specifications

  • Model number: QA019
  • Microcontroller: ESP32
  • Operating voltage: 5V
  • USB Type-C interface for data and power
  • On-board battery charging function with battery status indicator
  • Clear leg colours for easy wiring
  • Digital I/O pins: 14 (D0-D13)
  • Input-only GPIOs: 34, 35, 36, 39
  • Default I2C pins: GPIO 21 (SDA), GPIO 22 (SCL)
  • DAC pins: GPIO 25 (DAC1), GPIO 26 (DAC2)
  • Available pin functions: ADC, DAC, PWM, I2C, SPI
  • Compatibility: Compatible with Arduino UNO Shields etc

Interface and header compatibility:

Arduino form factor Compatible with Arduino UNO R3
I2C Default pins GPIO 21 SDA, GPIO 22 SCL
SPI SPI-capable pins available
PWM PWM-capable pins available
ADC Analogue inputs available
DAC GPIO 25 DAC1, GPIO 26 DAC2
USB USB Type-C interface
Battery On-board charging and battery indicator
Input-only GPIOs GPIO 34, GPIO 35, GPIO 36, GPIO 39
