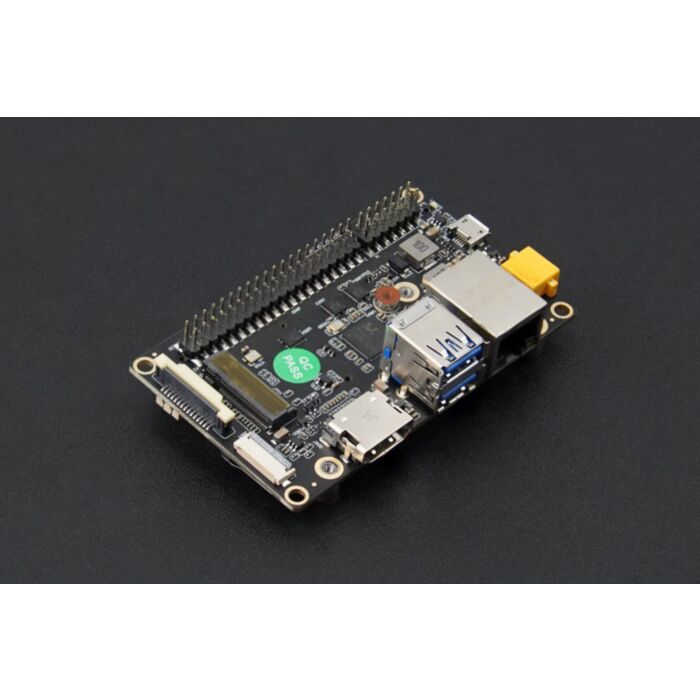

A203 Jetson Nano / Xavier NX Carrier Board (Support WiFi, Bluetooth, SSD)

SKU: DFR1122 Brand: DFRobot

The compact NVIDIA Jetson Nano / Xavier NX carrier board provides multiple interfaces and NVIDIA JetPack support. Ideal for AI and IoT applications...

$409.95 AUD, inc GST

$372.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Feb

Quantity Discounts:

3-5 $357.77 (exc GST)
5+ $346.59 (exc GST)

This is a carrier board that is compatible with the NVIDIA Jetson Nano/Xavier NX core module. It boasts a plethora of interfaces, including HDMI 2.0, Gigabit Ethernet, USB 3.0, USB 2.0 (with OTG functionality), M.2 key E PCIE, WiFi / BT, M.2 key M solid-state drive interface, CSI camera, RS232, SD card, CAN, GPIO, I2C, I2S, and even a cooling fan.

Once the NVIDIA Jetson Nano/Xavier NX core module is installed on this carrier board,it allows for the full potential of NVIDIA JetPack to be unlocked.This comprehensive software package includes the Board Support Package (BSP),Linux OS, NVIDIA CUDA, cuDNN, and TensorRT software libraries. These powerful tools can be utilized for deep learning, computer vision, GPU computing, multimedia processing, and more, enabling the realization of cutting-edge applications such as graphical AI.

This carrier board is particularly suitable for small-scale artificial intelligence graphics applications, such as smart city IoT edge devices, home robots, drones, unmanned boats, and autonomous submarines. Its versatility knows no bounds.

Dimension diagram of Jetson Nano/Xavier NX Carrier Board

Dimension diagram of Jetson Nano/Xavier NX Carrier Board (Unit: mm)

Interface diagram Jetson Nano/Xavier NX Carrier Board

Features

Compact size (87mm x 52mm x 26mm) saves installation space.
Lightweight (100g) good for small AI or IoT Applications
Compact & all-in-one design
Equipped with an anti-fall aviation plug that supports high currents
Cost-effective, suitable for narrow and small operation environments
Additional USB 3.0 ZIF connector compared to its original version(A203)
Certificate: FCC, CE, RoHS

Applications

Home robots
UAVs
Unmanned boats
Drone
Unmanned submarines
Sentiment Analysis

Specification

Power Requirements: +9V to +19V DC Input@3A
Network: Gigabit Ethernet Connector (10/100/1000)
Video Output: HDMI
USB
- USB 3.0 Type A (Integrated USB 2.0)
- USB 3.0 0.5mm pitch 20P ZIF
- USB 2.0 15 Pin
- USB 2.0 Micro-AB
M.2 KEY E PCIE: PCIE 2230 SIZE
M.2 KEY M: M.2 KEY M (NVMe SIZE 2242 SSD)
Serial: CAN
Camera: CSI CAMERA
I2S: I2S (3.3V Level)
Misc
- I2C Link (+3.3V I/O×2)
- GPIO ×6
- UART ×1
- SPI ×2
Compatibility: Jetson Nano/Xavier NX
Dimension: 87mm*52mm*26mm
Weight: 100g

Documents

Datasheet

Parts List

Jetson Nano/Xavier NX Carrier Board (A203) × 1
Power Adapter 90W 19V (Power cable not included) × 1
