A-Star Prime Accessory Pack

SKU: POLOLU-3110 Brand: Pololu

This accessory pack contains a variety of parts and headers that can be installed on an A-Star Prime for customized assembly...

$7.70 AUD, inc GST

$7.00 AUD, exc GST

Available with a lead time
Expect dispatch between May 13 and May 15

Quantity Discounts:

10-25 $6.79 (exc GST)
25+ $6.65 (exc GST)

This accessory pack contains headers and connectors that can be soldered to an A-Star Prime, allowing it to be easily wired to power sources and other circuits or devices. Also included are some shorting blocks that are useful for making some common jumper connections, as well as a through-hole buzzer.

The pack is primarily intended for use with versions of the A-Star Prime that ship with only SMT components installed:

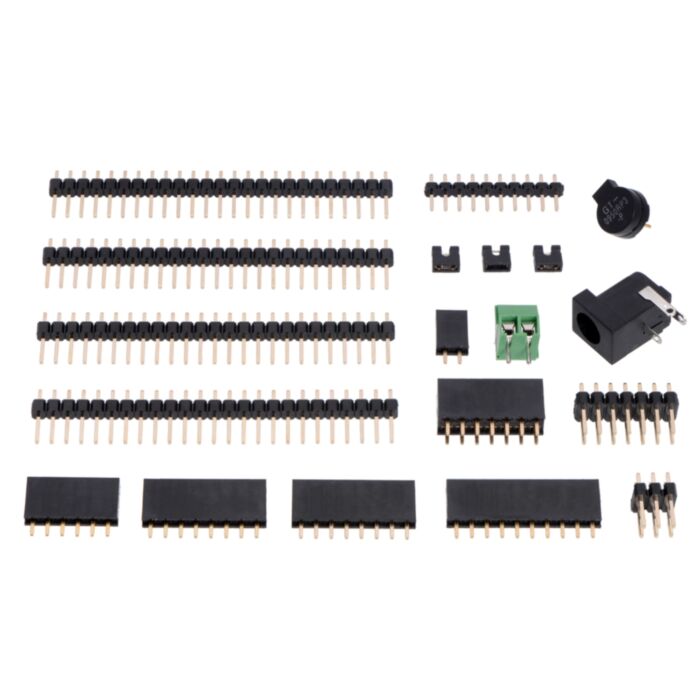

With the parts in this pack, you can customize your A-Star Prime by only adding the connectors you need (and leaving off the rest to minimize its weight and volume). The following items are included:

Four standard Arduino 0.1" female headers (one 1×6, two 1×8, one 1×10)
Four 1×25 0.1" male header strips
2×3 0.1" male header (ISP)
2×7 0.1" male header (LCD)
2×7 0.1"female header (LCD)
1×2 0.1" female header
1×10 low-profile 0.1" male header strip
Three low-profile 0.1" shorting blocks
Buzzer
DC barrel jack
2-pin 3.5 mm screw terminal block

An LCD is not included in the accessory pack, but one can be purchased separately; Pololu recommend this 8×2 character LCD, which can plug directly into the board once the included 2×7 female header is soldered to the LCD and the included 2×7 male header is soldered to the A-Star. Other HD44780-compatible displays can be connected to the A-Star with an appropriate cable if the A-Star is assembled with the included 2×7 male LCD header or with a shrouded 2×8 male header (not included).

Assembling an A-Star Prime with the accessory pack

The following pictures show an example of how some of the parts in the accessory pack can be used: the image to the left shows the A-Star 32U4 Prime LV microSD as it ships, and the image to the right shows the parts Pololu install on the A-Star 32U4 Prime LV microSD with LCD.

The diagrams below highlight some suggested locations for installing low-profile male headers, allowing jumper connections to be easily made with the matching low-profile shorting blocks:

Buzzer and CS-GND jumpers on the A-Star 32U4 Prime.

Battery level jumper on the A-Star 32U4 Prime.

For more information on the A-Star Prime, including details about its pinout and components, see the A-Star User’s Guide.
