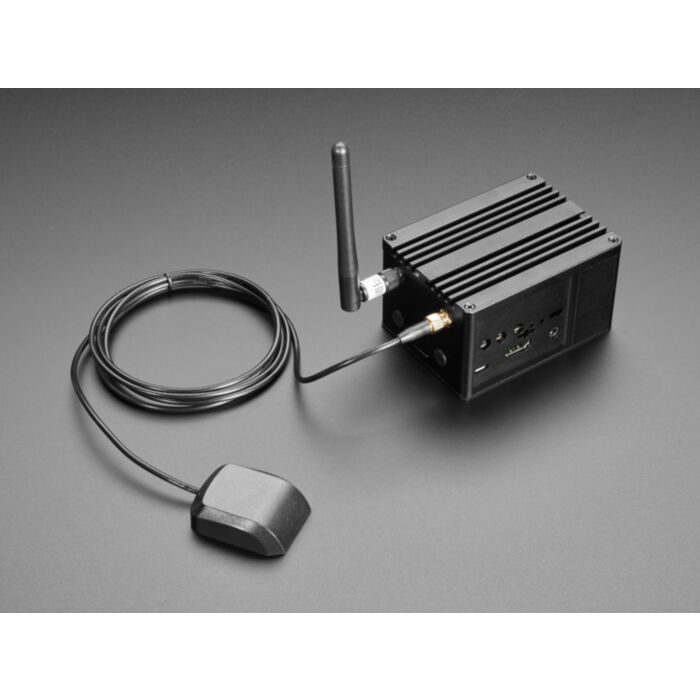

8 Channel LoRa Gateway Kit comes with Raspberry Pi, LoRa and GPS

SKU: ADA4327 Brand: Adafruit
If you're building a IoT project and need to send data back-and-forth, the WiFi module built into newer Pi's should be fine for most cases. But, what if you find...
$494.95 AUD, inc GST
$449.95 AUD, exc GST

Quantity Discounts:

  • 3-6 $436.45 (exc GST)
  • 6+ $427.45 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

Restrictions apply to this RF Equipment for use in Australia:

  • Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz  (check the product description for compatible frequency ranges).
  • If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

  • Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If you're building a IoT project and need to send data back-and-forth, the WiFi module built into newer Pi's should be fine for most cases. But, what if you find WiFi does not have a long range you need? If you're deploying your project somewhere more remotely, without WiFi or a strong cellular network, like a rural area, you'll need another option. Something that can be deployed quickly with no overhead setup and that will transmit/receive over a long distance.

Enter LoRa (Long Range) Radio - a smart, long-range, wireless transmission technology that enables the future of IoT (Internet of Things)without Cellular fees.

This LoRa HAT from RAK Wireless is capable of multi-channel, multi-node communication all running in a non-intimidating, hackable Raspberry Pi environment. Unlike Adafruit's basic LoRa gateway bonnet, this chipset can support all 8 channels, so it can handle multiple clients, on different LoRa channels, without having to do any code tweaks.

Adafruit have pulled together a pack with all the hardware you need to make a Raspberry Pi Powered LoRa router! Some assembly is required to screw together the parts, but no soldering is required. You even get an SD card ready to rock.

Includes:

  • Raspberry Pi 3 B+
  • 5V 2.5A Switching Power Supply with 20AWG MicroUSB Cable
  • 915MHz 8-Channel LoRa concentrator + GPS shield
  • 16GB MicroSD card ready to pop into your Raspberry Pi
  • Magnetic mount GPS/GNSS antenna 1m with SMA connector
  • 915 MHz LoRa compatible antenna (2dBi Gain / 50 Ω)
  • Mounting kit with 4 x brass standoffs & 4 x washers
  • Sleek and compact anodized enclosure (3 pieces): 68.3 mm x 92 mm x 53.5 mm
  • 8 x 10mm tall screws
  • 4 x 4.75mm tall screws
  • 4 x Rubber stoppers

Once you have your Internet-to-LoRa gateway set up with this kit, make LoRa nodes using Adafruit's Feather line for easy deployment of sensor networks that run on battery power. Don't forge to only use 900 MHz LoRa modules to match up with this transceiver HAT's frequency.

Technical Details

HAT Technical Details

  • LoRa Concentrator Engine: Semtech SX1301
  • Sensitivity up to -142.5 dBm
  • New Model integrates Ublox MAX-7Q GPS module
  • Max output power up to 350mW or 25.5dBm
  • Range up to 15 km (Line of Sight), ~2km in dense urban areas
  • Designed for 915MHz US/Australia LoRA ISM band
  • Emulates 49 x LoRa demodulators, 10 programmable parallel demodulation paths, 8 uplink ch, 1 downlink ch
  • Temperature: -40º to 85ºC
  • 2x SX1257 as Tx/Rx front-ends
  • SMA connector for GPS/GNSS antenna
  • RP-SMA connector for 915MHz antenna
  • FCC & CE compliance
  • Raspberry Pi Firmware/SD Card image
  • Tons of documentation on the RAK Wireless site including step-by-step setup guides.
