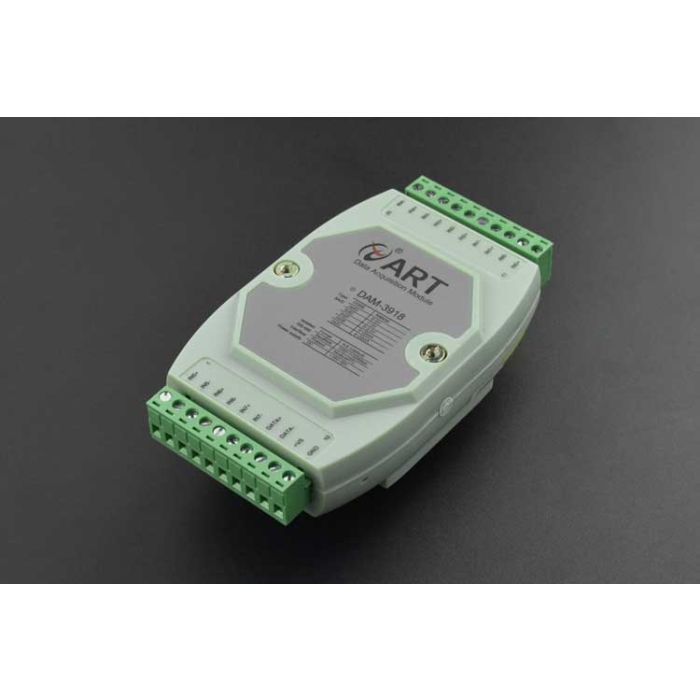

8-Channel Isolated Analog Data Acquisition Module

SKU: DFR0853 Brand: DFRobot

This is an 8-channel single-end 12-bit analog data acquisition module with an accuracy of up to ±1‰, supporting 0-5V, 1-5V, 0-2.5V, 0-20mA, 4-20mA ranges. It can...

$139.95 AUD, inc GST

$127.23 AUD, exc GST

Available with a lead time
Expect dispatch between May 31 and Jun 06

Quantity Discounts:

5-10 $123.41 (exc GST)
10+ $120.86 (exc GST)

This is an 8-channel single-end 12-bit analog data acquisition module with an accuracy of up to ±1‰, supporting 0-5V, 1-5V, 0-2.5V, 0-20mA, 4-20mA ranges. It can collect multiple channels simultaneously, and can also collect voltage and current at the same time. The module RS485 communication interface has optoelectronic isolation, and the application layer adopts the standard Modbus RTU protocol, which conforms to industrial standards. It can be conveniently used to communicate with the host computer. You can use this module to realize rapid networking, build a monitoring system, or connect with PLC, configuration software, Industrial Personal Computer, OPC, and other systems.

Each channel of the module is independent, which can set the range independently. There are a variety of ranges to choose from, and users can switch them at will according to their needs. In addition to supporting standard 4-wire sensors, it also supports 2-wire and 3-wire sensor inputs.

Security is extremely guaranteed. The product has communication isolation and input/output isolation, so that it can not only resist interference during use, ensure accurate and stable data transmission, but also in case of strong electricity, it will only burn out the collection product at most and the entire system will not be damaged. The module supports a 12-30V wide voltage power supply, and the interface adopts an anti-reverse design.

Specification

Input Channel: 8-channel single-end analog input
Input Type: voltage input, current input
Acquisition range: 0~5V, 1~5V, 0~2.5V, 0~20mA, 4~20mA, the default factory value is 4~20mA
Sampling Rate: 1400sps (total channel), 50sps (single channel)
Resolution: 12 bits
Collection Accuracy: 1‰
Input Impedance: voltage range: 10MΩ, current range: 249Ω
Range Setting: each channel can independently configure the range
Communication Interface: RS485
Isolation Voltage: 1500VDC
RS485 Transmission Rate:
Maximum 180 times/second (total channel of a single module, in the case of 115200bps)
Maximum 24 times/second (total channel of a single module, in the case of 9600bps)
Maximum 3 times/second (total channel of a single module, in the case of 1200bps)
Baud Rate: 1200~115200bps
Watchdog: Software watchdog
Power Supply Voltage: +12~30VDC
Power Protection: power reverse protection
Power Consumption: rated value 0.5W @ 24VDC
Operating Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +85°C

Parts List

Isolated Analog Data Acquisition Module x1
