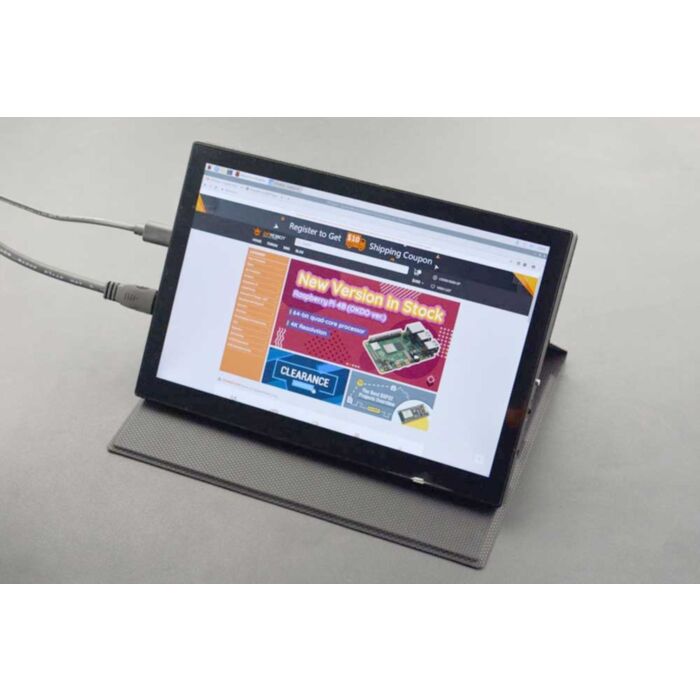

8.9 Inch 1920x1200 IPS Touch Display

SKU: DFR0658 Brand: DFRobot Guides (1)

Retired Product

Replaced by: HDMI Display
This display has been upgraded with more durable full-size HDMI ports, and an additional USB-A port. We're working on sourcing new images that reflect this change.
This product has been replaced by: HDMI Display
This product is no longer available. This page is only for reference.

This 8.9”1920x1200 IPS Touch Display is most suitable for Jetson Nano and Raspberry Pi 4B/3B+. It features a small size, plug and play, and 10 touching points, providing a smooth and sensitive touching experience for you. The product comes with left and right loudspeakers that offer high-quality stereo to bring you the perfect user experience.

With 1920*1200 resolution, you can always enjoy high-definition images when developing your projects

DFR0658 ports on the side of the screen

IPS panel is adopted for greatly improving the color displaying ability, especially, it ensures more accurate color balance, hue, and saturation to present realistic colorful images; With a viewing angle of 178°, you can enjoy high-definition picture almost at every angle.

User Guide

typical connection to a pi and jetson nano

jetson power passthrough example with hdmi

jetson power passthrough without hdmi



Display Dimension

dimensions of the screen

Features

  • 1920*1200 High-definition resolution, 8.9 inches IPS display
  • 10 touching points, smooth and sensitive experience
  • IPS panel
  • Two loudspeaker, high-quality stereo
  • HDMI port for various applications
  • Come with a leather case, easy to carry, net weight 394.2g
  • Support Raspberry Pi 4B/3B+ and NVIDIA Jetson nano

Specification

  • Dimension: 8.9”
  • Panel Type: IPS
  • Resolution: 1920 x 1200
  • Brightness: 300cd/?
  • Aspect Ratio: 16 : 10
  • Contrast Ratio: 800 : 1
  • Color Gamut: NTSC 72%
  • Refresh Rate: 60HZ
  • Viewing Angle: 178°
  • Touching Point: 10
  • Extra two loudspeakers
  • Power Supply: PD protocol 5-20V
  • Outline Dimension: 211*143*9.5mm/8.31*5.63*0.37”
  • Weight: 395g

Shipping List

  • 8.9" 1920x1200 IPS Touch Display  x1
  • Type-c to USB A cable  x2
  • Mini HDMI to HDMI cable x1
  • Mini HDMI to Micro HDMI cable x1
  • Type-c to type-c USB cable x1
  • Protective Cover x1
