64x32 RGB LED Matrix - 2.5mm pitch

SKU: ADA5036 Brand: Adafruit

Bring a little bit of Times Square into your home with this sweet 64 x 32 square RGB LED matrix panel. These panels are normally used to make video walls, ...

$95.60 AUD, inc GST

$86.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 17 and May 20

Quantity Discounts:

6-12 $83.44 (exc GST)
12+ $80.83 (exc GST)

Recommended Essentials:

Pimoroni Interstate 75

$41.55

Female DC Barrel Jack Adapter (2.1mm)

$2.35

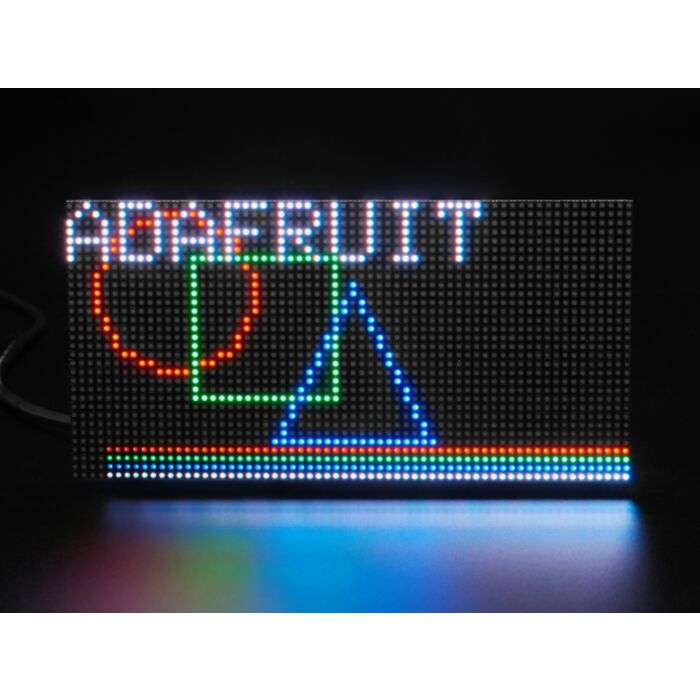

Bring a little bit of Times Square into your home with this sweet 64 x 32 square RGB LED matrix panel. These panels are normally used to make video walls, in New York Adafruit see them on the sides of busses and bus stops, to display animations or short video clips. Adafruit thought they looked really cool so they picked up a few boxes of them from a factory.

This version is the 2.5mm pitch 64x32 RGB LED Matrix. Please note you cannot use an Arduino UNO to drive this size, it's way too big! Use an Arduino Mega, Raspberry Pi, BBB or other device that can handle displaying to RGB matricies and has plenty of RAM.

This is a lot like our 3mm pitch 64x32 RGB LED matrix panel, but the LEDs are eeeven closer, at a tight 2.5mm (P2.5) pitch. It's made to look good indoors, even with a wide-angle view (160 degrees), and look great in ambient light. If you are looking for a wider pitch for a farther view distance, check out our 6mm pitch 64x32 RGB LED Matrix or our 5mm pitch 64x32 RGB LED Matrix.

This matrix has 2048 bright RGB LEDs arranged in a 64x32 grid on the front. On the back, there is a PCB with two IDC connectors (one input, one output: in theory you can chain these together) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.

These displays are technically 'chainable' - connect one output to the next input - but Adafruit's Arduino example code does not support this (yet). It requires a high-speed processor and more RAM than the Arduino has!

These panels require 13 digital pins (6-bit data, 7-bit control) and a good 5V supply, up to 4A per panel. We suggest Adafruit's 4A regulated 5V adapter and then connecting a 2.1mm jack. Please check out Adafruit's tutorial for more details!

Comes with:

A single 64x32 RGB panel,
An IDC cable
A plug in power cable

Keep in mind that these displays are designed to be driven by FPGAs or other high speed processors: they do not have built in PWM control of any kind. Instead, you're supposed to redraw the screen over and over to 'manually' PWM the whole thing. On a 16 MHz Arduino Mega, Adafruit managed to squeeze 12-bit color (4096 colors) with 40% CPU usage but this display would really shine if driven by any FPGA, CPLD, Propeller, XMOS or other high speed multi-core controller. The good news is that the display is pre-white balanced with nice uniformity so if you turn on all the LEDs it's not a particularly tinted white.

Of course, Adafruit wouldn't leave you with a datasheet and a "good luck!" Adafruit have a full wiring diagrams and working Arduino library code with examples from drawing pixels, lines, rectangles, circles and text. You'll get your color blasting within the hour! On an Arduino, you'll need 16 digital pins, and about 3200 bytes of RAM to buffer the 12-bit color image.

Technical Details

Dimensions: 160mm x 80mm x 14.7mm
Panel weight with IDC cables and power cables: 176g
Compatible with M3 mounting screws
5V regulated power input @ ~4A (with all LEDs on)
2000 mcd LEDs on 3mm pitch
1/16 scan rate
Indoor display, wide visibility
Displays are 'chainable'

RoHS 2 2011 65 EU Compliant RoHS 2 2015 863 EU Compliant
