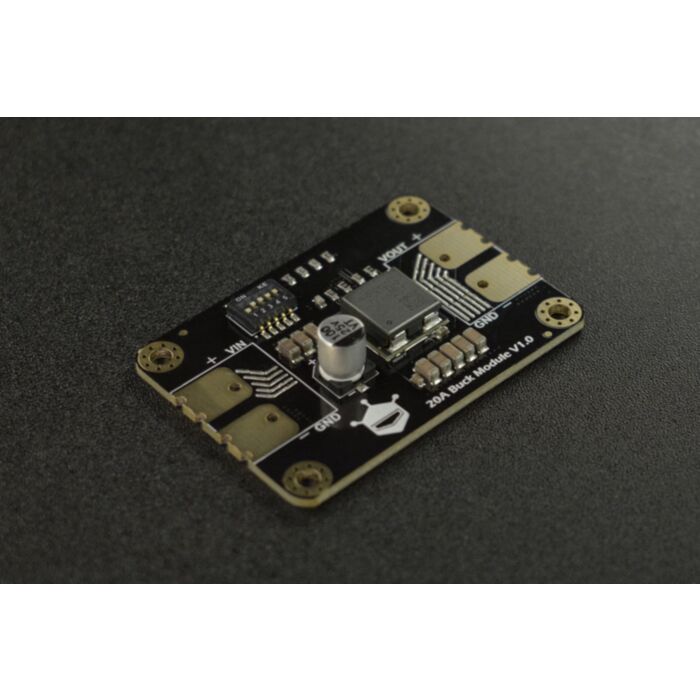

60W Adjustable DC-DC Buck Converter Module

SKU: DFR1025 Brand: DFRobot
This 60W DC-DC Buck Converter features adjustable 0.6V-5.1V output voltage and up to 18A output current. ...
$16.20 AUD, inc GST
$14.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

  • 10-25 $14.14 (exc GST)
  • 25+ $13.70 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

What is a buck converter?

A buck converter is a DC-to-DC converter that steps down the input voltage and steps up the output current. It does not waste as much power as heat as a linear regulator does. A buck converter is made up of a switch, a diode, an inductor, and a capacitor. The switch determines how much of the input voltage reaches the inductor and capacitor. They act as filters to smooth out the output voltage and current.

Introduction of 60W Adjustable DC-DC Buck Converter Module

Still bothered by how to correctly power your RGB LED strip or get smooth servo movement? Don’t worry, this 60W DC-DC buck converter takes care of all.

This buck converter module converts high-power 12V or lithium battery 11.1V to 5V output. 60W power can be available with only one such module! Featuring adjustable 0.6V-5.1V output voltage and up to 18A output current, the module can be used to drive a 5m WS2812 RGB LED strip or other device requiring low voltage and high current.

In addition, the converter incorporates protective functions like short-circuit protection, over-current protection, and overheating protection to ensure stable performance.

Safe Operating Range of 60W Adjustable DC-DC Buck Converter Module

Safe Operating Range

The parameters of the safe operating range are tested in typical experiment environments. It is recommended to measure the surface temperature of the buck converter to determine if the dissipation needs to be improved.

- Surface temperature < 80°C: the converter performs steadily

- Surface temperature in 80 - 90°C: dissipation improvement recommended

- Surface temperature >90°C: dissipation improvement is required since the overheat protection may be triggered at any time.

Features

  • Industrial-grade module,ensure long-term stable operation
  • 1.8~5.1V output voltage adjustable
  • Large output current
  • Applications

  • Industrial applications
  • Battery-powered devices
  • LED lighting
  • Communication equipment
  • Specification

  • Input Voltage: 9V-15V
  • Output Voltage: 0.6V-5.1V
  • Output Current: 18A(Active Dissipation)
  • Output Power: 60W(Active Dissipation)
  • Conversion Efficiency: 92%(Typical)
  • Outline Dimension: 52×37mm/2.05×1.46”
  • Documents

  • Product wiki
  • Dimensional Drawings
  • Parts List

  • 60W Adjustable DC-DC Buck Converter x1
  • 2Pin Terminal Block x2
  • Aluminum Heat Sink x1
