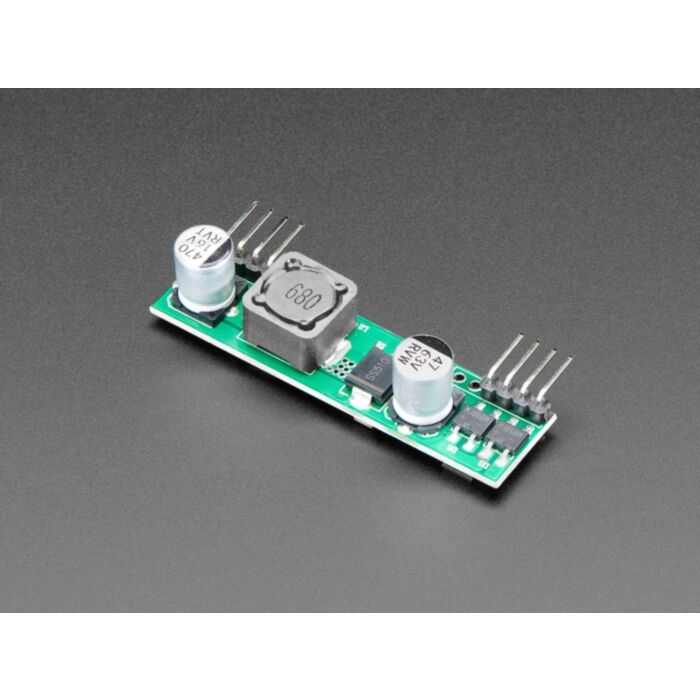

5V 1.5A Output PoE Module - Works with Raspberry Pi 3 B+

SKU: ADA3847 Brand: Adafruit

Power over Ethernet (PoE) can make your project wiring a breeze - instead of needing a wire for power and data, you can use one Ethernet cable for both! All you...

$17.85 AUD, inc GST

$16.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $15.58 (exc GST)
25+ $15.09 (exc GST)

Power over Ethernet (PoE) can make your project wiring a breeze - instead of needing a wire for power and data, you can use one Ethernet cable for both! All you need is this handy PoE module and access to the center-taps on your Ethernet-capable board. Attach the four input wires, and get regulated 5V 1.5A on the other side. Amazing!

This module works well with the Raspberry Pi 3 Model B+, which has the 4 wires on a header. As you can see in Adafruit's photos, you just need some female-female jumper wires to get the Ethernet wires to the module, and then two wires to bring the 5V back to the header. Note that even though a 2.5A power supply is recommended for a Pi 3B+, that's only required if you attach a bunch of accessories (such as a 7" display!) 1.5A will cover a wide range of usages, as the current draw is around 0.7A max without extras.

If you don't have access to those pins, but can power your board or computer with a micro USB cable, check out Adafruit's 5V microUSB PoE Splitter. It's bigger and more expensive but really easy to use Great for older Raspberry Pi's (not the 3 B+), Feathers, etc)

We also have an isolated version of this module, when you want electrical separation.

Technical Details

Product Dimensions: 56.4mm x 20.3mm x 13.2mm / 2.2" x 0.8" x 0.5"
Product Weight: 9.0g / 0.3oz

To use:

Connect pins 1 and 2 to Ethernet wires 4 and 5
Connect pins 3 and 4 to Ethernet wires 7 and 8
Pin labeled (-) is ground output
Pin labeled (+) is 5V out
