5MP Night Vision Camera for Raspberry Pi

SKU: SEN0184

$74.13 AUD, inc GST
$67.39 AUD, exc GST

More Views

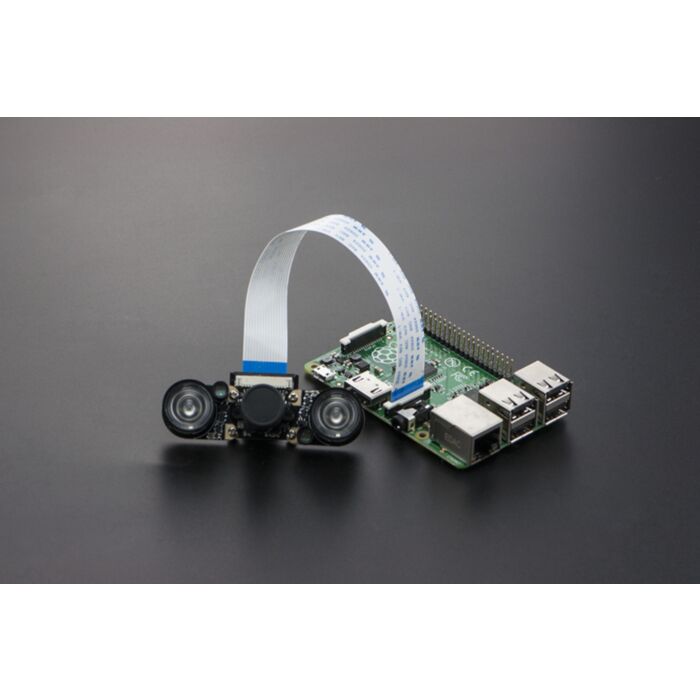

5MP Night Vision Camera for Raspberry Pi
74.13 AUD

SKU: SEN0184

$74.13 AUD, inc GST
$67.39 AUD, exc GST
1 reviews 0 5 4

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 55 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 2nd of Jul with Express Post within Australia.
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

This 5MP Night Vision Camera for Raspberry Pi is compatible with every version of Raspberry Pi, and comes with infrared lighting. It has infrared night vision mode, and the focus ring can be adjusted according to the position of objects. With external 1W high power 850nm infrared photographic lights, it can preform very well even in dim environments. Photoresistors and adjustable resistance could detect ambient light intensity and adjust the threshold of infrared light switch automatically.


Specification

  • Camera: 5 million pixels
  • Photosensitive Module: OV5647
  • Camera Parameters:
  • CCD size: 1/4 inches
  • Aperture (f): 1.8
  • Focal Length: 3.6MM (adjustable)
  • Diagonal: 75.7 degrees
  • Sensor best PIX: 1080p
  • 4 Screw Holes
  • Can be used in a fixed position
  • 3.3V external power supplies
  • Supports access to the infrared light or fill light
  • Dimension: 25mm x 24mm

Parts List

  • 5MP Night Vision Camera for Raspberry Pi x 1
  • Infrared LED Board x 2
  • 15PIN FFC x 1
Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by William verified purchaser
    Rating
    80

    Once you figure out how to - it's simple to assemble and does what it says it does.
    I find there is some interference in the camera feed, and attaching some basic instructions would help a lot when attaching the IR lights.
    The IR lights have to be in FRONT of the camera when screwing them on, not behind. I only came to this realisation when closely checking out the product picture. (Posted on 4/02/2018)
