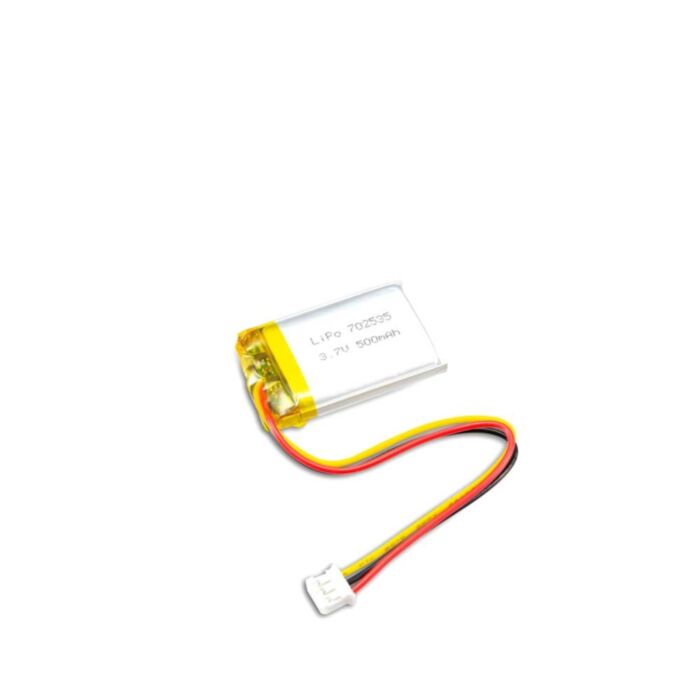

3-pin LiPo Battery for PiJuice Zero 500mAh
SKU: CE06793 Brand: Core Electronics
500mAh Lithium-Ion battery that can be used with PiJuice Zero.
$5.20 AUD, inc GST
$4.73 AUD, exc GST
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov
Quantity Discounts:
- 10-25 $4.54 (exc GST)
- 25+ $4.40 (exc GST)
Recommended Essentials:
LiPo Safety Battery Bag
$5.95
This 500mAh Lithium-Ion battery is compatible with the PiJuice Zero. The PiJuice Zero pHAT doesn’t come with a standard onboard battery.
We recommend this or one of the other batteries as seen below for the Pijuice Zero.
Or for a larger Pijuice battery see below:
- PiJuice - 4000mAh Battery
- PiJuice - 6000mAh Battery
- PiJuice - 10000mAh Battery
- PiJuice - 20000mAh Battery
Specifications
- Capacity: 500mAh
- Max Discharge: 2A
- Dimension: 6.7mm x 25mm x 40mm
- Standard 3-pin JST-PH connector
- Cable length: 100mm
- Weight: 15g
- Onboard NTC Temperature Sensor
- Volts: 3.7
- Type: Li-Polymer
- Built-in protection circuit PCM for prevent overcharging or over-discharging. The PiJuice Zero also has this feature.
Note: Does not include Pijuice Zero
