3.2 TFT LCD with Touchscreen Breakout Board w/MicroSD Socket - ILI9341

Rating:

100% of 100

SKU: ADA1743 Brand: Adafruit

Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is really big (3.2" diagonal) bright (6 white-LED backlight) and colorful!...

$72.95 AUD, inc GST

$66.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

6-12 $64.33 (exc GST)
12+ $63.00 (exc GST)

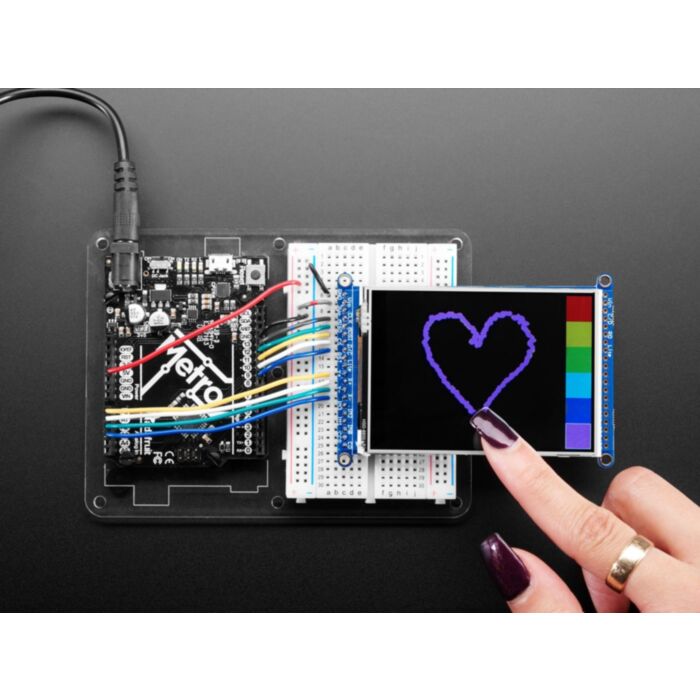

Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is really big (3.2" diagonal) bright (6 white-LED backlight) and colorful! 240x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you'll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode. In addition, 4 pins are required for the touchscreen (2 digital, 2 analog) or you can purchase and use Adafruit's resistive touchscreen controller (not included) to use I2C or SPI

Adafruit wrapped up this display into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you're going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images. (microSD card not included, but any will work)

Of course, Adafruit wouldn't just leave you with a datasheet and a "good luck!". For 8-bit interface fans Adafruit have written a full open source graphics library that can draw pixels, lines, rectangles, circles, text, and more. For SPI users, Adafruit have a library as well, its separate from the 8-bit library since both versions are heavily optimized. We also have a touch screen library that detects x, y and z (pressure) and example code to demonstrate all of it.

Follow Adafruit's step by step guide for wiring, code and drawing. You'll be running in 15 minutes

Technical Details

Product Dimensions: 90.0mm x 60.0mm x 7.9mm / 3.5" x 2.4" x 0.3"
Product Weight: 45.0g / 1.6oz

This product is listed in:

Displays & Screens>Graphic
