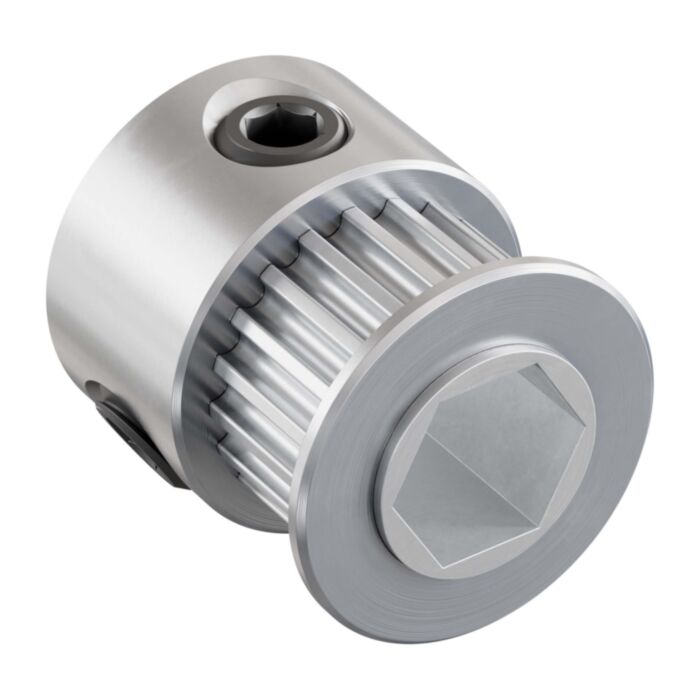

2mm Pitch GT2 Pinion Timing Pulley (8mm REX™ Bore, 20 Tooth)

SKU: GB-3422-4008-0020 Brand: goBilda

Punch up the precision with a GT2 Pinion Timing Pulley! Fine-toothed to drive 6mm wide GT2 belt in high-precision applications like.....

$11.90 AUD, inc GST

$10.82 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $10.28 (exc GST)
25+ $9.74 (exc GST)

Punch up the precision with a GT2 Pinion Timing Pulley! Fine-toothed to drive 6mm wide GT2 belt in high-precision applications like printers, sliders, and XY tables, this dual-material pulley rocks steel where you need it—in its flange, and the barrel housing the threads of its set-screw hole—while still feeling slim on the scales due to the remainder of the pulley being aluminum.

This 8mm REX™ bore pulley can attach to 8mm REX™ shafting to help you implement positive drive in your precision belt operations. 8mm REX™ is the staple shaft profile of goBILDA®; you can find it throughout the build system, including in gear motors.

This pulley rocks two build-in shims: one on each end! This means you’ll always be able to run it against a bearing without fear of contacting the bearings’ outer race.

Downloads

Specs

# of teeth	20
Material	Aluminum and Steel
Weight	10g
Bore	8mm REX™
Pitch	2mm (GT2)

This product is listed in:

goBILDA>MOTION>Timing Belts & Pulleys>2mm GT2>2mm GT2 Timing Pulleys
