1701 Series Face Tapped Motor Mount (16-3)

SKU: GB-1701-0016-0003 Brand: goBilda

This motor mount is able to fasten to the face of a 5201 Series Gear.....

$13.60 AUD, inc GST

$12.36 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $11.75 (exc GST)
25+ $11.13 (exc GST)

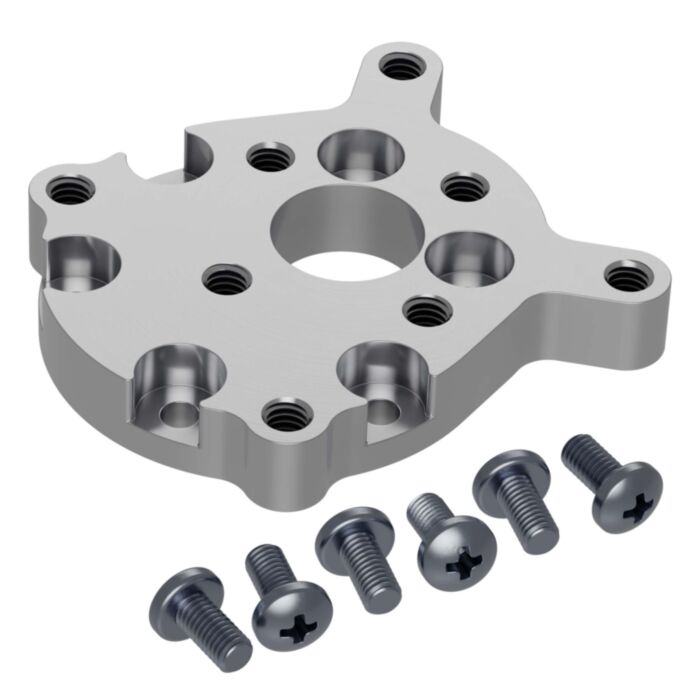

This motor mount is able to fasten to the face of a 5201 Series Gear Motor (as well as other spur motors that contain a 31mm bolt-circle) while centering the output shaft with the goBILDA pattern. We’ve included (6) M3 x 6mm screws to hold the motor mount to the face of the gearbox. There are threaded holes on both the 16mm pattern as well as the 32mm so that you have options where and how it fastens to your chassis. The 7mm overall width sets the motor back so that the motor shaft bushing remains just below the face of the motor mount.

Downloads

Specs

Weight	24g
Material	Aluminum
Finish	Clear Anodized
Motor Compatibility	37mm Spur
