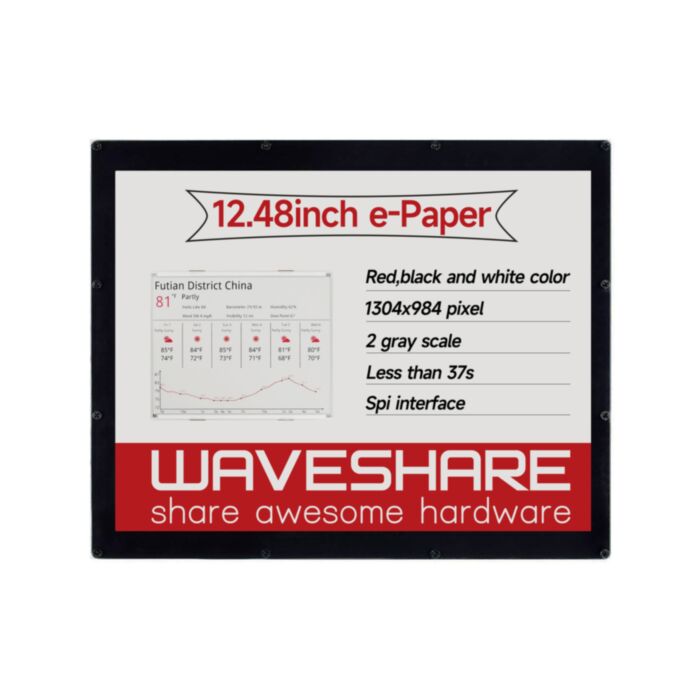

1304×984, 12.48inch E-Ink display module, red/black/white three-color

SKU: WS-17299 Brand: Waveshare
1304×984, 12.48inch E-Ink display module, red/black/white three-color, SPI interface...
$329.95 AUD, inc GST
$299.95 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 13 and Dec 16

Quantity Discounts:

  • 3-5 $290.95 (exc GST)
  • 5+ $284.95 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is an E-Ink display module, 12.48inch, 1304×984 resolution, with embedded controller

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Arduino compatible header, allows directly plugging Arduino boards like UNO / UNO PLUS
  • ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
  • SPI control interface, for working with STM32 or other MCU host boards
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Acrylic protective case, keeping the screen safe, nice looking
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32/ESP32)



Specifications

  • Operating voltage: 3.3V / 5V
  • Interface: 4-wire SPI
  • Outline dimension: 280.00 × 229.50mm
  • Display size: 252.98 × 190.90mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 1304 × 984
  • Display color: red, black, white
  • Grey scale: 2
  • Full refresh time: 37s
  • Refresh power: 82.5mW(typ.)
  • Standby current: <0.01uA (almost none)
  • Viewing angle: >170°



Dimensions

12.48inch e-Paper Module (B) dimensions

Resources

Wiki for 3-Colour E-Ink Display

Shipping List



  1. 12.48inch e-Paper Module (B) x1
  2. 8PIN squid wire x2
  3. Screwdriver x1
