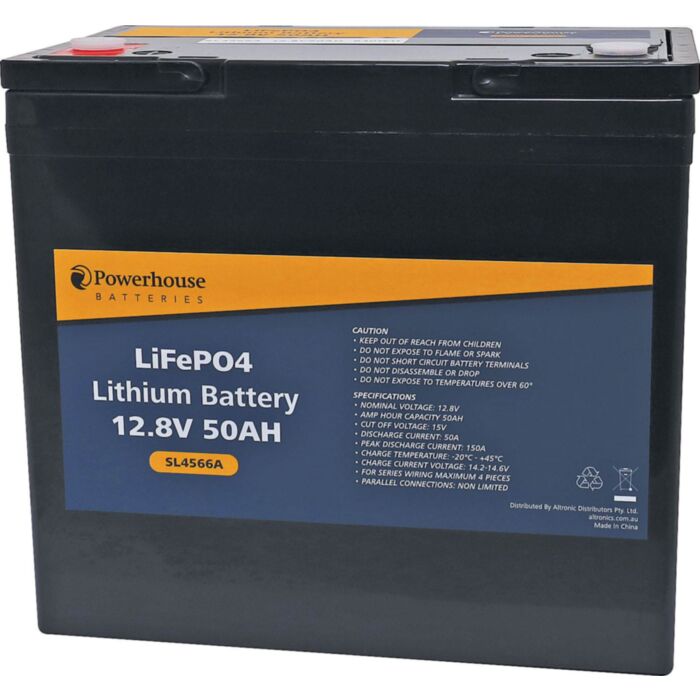

12V 50Ah Lithium Iron Phosphate Battery (LiFePO4, M6)

SKU: ASL4566A Brand: Core Electronics

With all the benefits of cutting edge lithium technology. LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries.

$554.95 AUD, inc GST

$504.50 AUD, exc GST

Quantity Discounts:

3-5 $489.36 (exc GST)
5+ $479.27 (exc GST)

Out of Stock

This 12V 50Ah LiFePO4 replacement battery is compatible in size with traditional 50Ah SLA batteries, but with all the benefits of cutting edge lithium technology. LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries. LiFePO4 also provide more usable life per cycle, allowing for longer run times by holding a higher voltage until capacity is almost exhausted. These batteries will also maintain 80-90% charge when in storage - far higher than their lead acid counterparts. The latest generation in maintenance free batteries is here!

Each battery is fitted with an internal battery management system to provide safe charging and discharging at all times. This system provides internal short circuit, over temperature and under/over voltage cut off. Can be wired in series and/or parallel.

Factory supplied at 30% charge for safety compliance. Must be charged fully before use.

Excessive temperatures over 65ºC can effect the ABS housing. Need to be well ventilated in warm conditions. Not for use in engine bays.

Features

Internal battery management system for safe charging and discharging.
Drop in replacement for standard lead acid 50Ah batteries
Half the weight of traditional lead acid batteries.
Less discharge when in storage compared with traditional lead acid batteries.
Longer service life compared to lead acid.
Longer run time compared to lead acid.

What are LiFePO4 type batteries?

Check out our handy article explaining the benefits of using LiFePO4 batteries.

Information & Downloads

Specifications

General
- Dimensions: 229 x 138 x 213mm
- Overall Weight: 7kg
- Terminal Type: M6 bolt / F8
- Connection: 12-48V max 4 in series, no limit in parallel.
- Case Material: ABS
- Case IP Rating: IP56
- Cell Type: Cylinder
- Certification: CB/CE, UN38.3, UL1642 @ cell.
- Shipping Class: UN3480, Class 9
Battery Module Specification
- Nominal Voltage: 12.8V @ 25°C, 0.2C
- Capacity: 50Ah @ 25°C, 0.2C
Operating Parameters
- Charging Voltage: 13.8 - 14.4V
- Discharging Voltage: 11.8V (8.8 - 15V range)
- Charging Current: 50A max, Recommended 25A
- Max Constant Discharge: 50A
- Pulse Discharge: 360A for 50mS
Temperature
- Charge Range: 0 to 45°C
- Discharge Range: -20 to 60°C
- Storage Range: -20 to 45°C
Service Life
- Design life: >10 years @ 25° C,0.2C
- Cycle Life (25°C, 0.2C): >2000 times (100% DOD to 80% end)
- Cycle Life (25°C, 0.5C): >4000 cycles (100% DOD to 50% end)
BMS Parameters
Charging
- Cell Voltage Protection: 3.7V Delay 1-2S (Recover when discharge current >1A or cell voltage <3.38V or module voltage <13.52V)
- Module Voltage Protection: 14.8V Delay 1-2S (Recover when discharge current >1A or cell voltage <3.38V or module voltage <13.52V)
- Over Charging Current: 50A Delay 20-30S (Turn to pre-charge mode and try to recover in every 3 minutes)
- Temperature protection: <-10°C or >70°C, Delay 1-2S (Recovery when >0°C or <60°C)
Discharging
- Cell Voltage Protection: 2.1V Delay 500mS (Recover when charge current >1A or cell voltage >2.6V or module voltage >10.4V)
- Module Voltage protection: 8.4V Delay 1-2S (Recover when charge current >1A or cell voltage >2.6V or module voltage >10.4V)
- Over Discharging Current 1: 160-180A Delay 500-1500mS (Recover when charging current >1A, or recover in every 60S)
- Over Discharging Current 2: 320-360A Delay 50-150mS (Recover when charging current >1A, or recover in every 60S)
- Short Circuit: 150-700us
- Temperature Protection: <-20°C or >75°C, Delay 1-2S (Recovery when >-10°C or <65°C)
BMS Features
- PCB Temp Protection: >115°C Delay 1-2S Recover when <80°C
- Cell Balance: 25-45mA passive balance cell voltage difference > 45mV
- Temperature Accuracy: ±2°C Cycle measurement Measuring range -40 to 100°C
- Voltage Accuracy: ±20mV Cycle measurement for cells and module
- Current Accuracy: FSC±5% Cycle measurement measuring range -200 to +200
- SOC: 5% (integral calculation)
- Power Consumption: <300uA (switch off mode - storage), <100uA (sleep mode - protection & standby), <15mA (operating mode)

*Specifications are subject to change without notice.

Warranty

We offer 5 years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.
