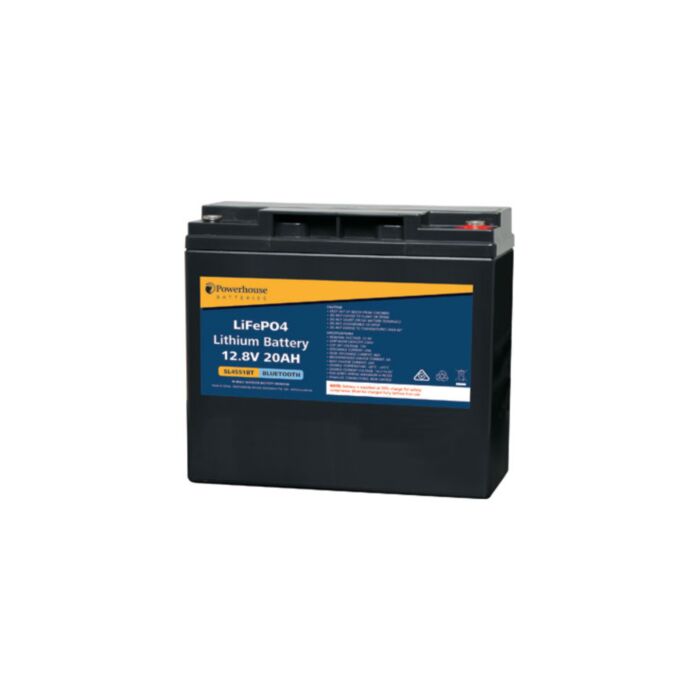

12V 20Ah Lithium LiFePO4 Battery M5/F13 With Bluetooth

SKU: ASL4551BT Brand: Core Electronics

This 20Ah LiFEPO4 replacement battery is compatible in size with traditional 20Ah SLA batteries, but with all the benefits of cutting edge lithium.

$204.95 AUD, inc GST

$186.32 AUD, exc GST

Available with a lead time
Expect dispatch between Sep 03 and Sep 09

Quantity Discounts:

5-10 $180.73 (exc GST)
10+ $177.00 (exc GST)

The same great Powerhouse LiFePo4 performance now with added in-built Bluetooth battery monitoring. Pair your battery with your phone and stay up to date with how your battery is charging and discharging as you use it. It offers live stats and historical data via an iOS or Android based app.

This 12V 30Ah lithium battery (LiFePO4 chemistry) is compatible in size with traditional 26Ah SLA batteries, but with all the benefits of cutting edge lithium technology. LiFePO4 batteries offer longer service life than traditional lead acid batteries, plus weigh less than HALF as much as SLA batteries. LiFePO4 also provides more usable life per cycle, allowing for longer run times by holding a higher voltage until capacity is almost exhausted. These batteries will also maintain 80-90% charge when in storage - far higher than their lead acid counterparts.

The latest generation in maintenance free batteries is here!Each battery is fitted with an internal battery management system to provide safe charging and discharging at all times. This system provides internal short circuit, over temperature and under/over voltage cut off. Can be wired in series and/or parallel. When used in series each battery will need to be discharged to cut off before connecting so that all cells are all balanced.

Factory supplied at 30% charge for safety compliance. Must be charged fully before use.

Features

Internal battery management system for safe charging and discharging.
Drop in replacement for standard lead acid 20Ah batteries
Half the weight of traditional lead acid batteries.
Less discharge when in storage compared with traditional lead acid batteries.
Longer service life compared to lead acid.
Longer run time compared to lead acid.

About the Bluetooth monitoring App. The Powerhouse battery monitoring app is currently in development, however in the mean time customers can utilise the XiaoXiangElectric battery monitor app available on the GooglePlay and Apple App stores at the links below:iOS App Store Android Devices

Specifications

For extended specfications, please refer to the datasheet PDF download

Dimensions: 181L x 77W x 167Hmm
Overall Weight: 2kg
Terminal Type: M5
Connection: 12-48V max 4 in series, no limit in parallel.
Note: When used in series each battery will need to be discharged to cut off before connecting so that all cells are all balanced.
Case Material: ABS
Case IP Rating: IP65
Certification: CB/CE
Shipping Class: UN3480, Class 9
