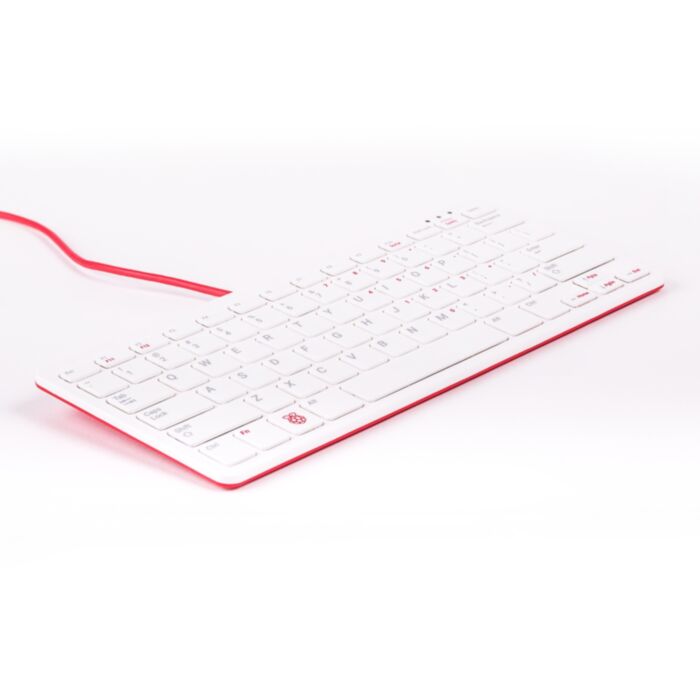

Raspberry Pi Keyboard - Red/White
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov
Quantity Discounts:
- 10-25 $28.22 (exc GST)
- 25+ $27.64 (exc GST)
Recommended Essentials:
Raspberry Pi's official keyboard includes three host USB ports for connecting external devices, such as USB mice, USB drives, and other USB-controlled devices. It features the ANSI layout we use here in Australia, and works under the English (US) keymap in Linux.
The product’s micro USB port is for connection to the Raspberry Pi. Via the USB hub built into the keyboard, the Raspberry Pi controls, and provides power to, the three USB Type A ports
Diagram sideview of official Raspberry Pi keyboard and hub
Features of the keyboard
The Raspberry Pi keyboard has three lock keys: Num Lock, Scroll Lock, and Caps Lock. There are three LEDs in the top right-hand corner that indicate which locks are enabled. Diagram view of the lock keys on the official Raspberry Pi keyboard and hub
Num Lock – Allows use of the red number keys on the letter keys, effectively creating a numeric keypad. This mode is enabled and disabled by pressing the Num Lock key.
Caps Lock – Allows typing capital letters; press the Shift key to type lower-case letters in this mode. This mode is enabled and disabled by pressing the Caps Lock key.
Scroll Lock (ScrLk) – Allows use of the cursor keys for browsing web pages and spreadsheets without the mouse. This mode is enabled and disabled by pressing the ScrLk key while holding the Fn key.
Connection diagram
This is the configuration we recommend for using your Raspberry Pi, official keyboard and hub, and official mouse together. The hub on the keyboard ensures easy access to USB drives, and the mouse’s cable is tidy, while being long enough to allow you to use the mouse left- or right-handed.
Note: It is important that the power supply is connected to the Raspberry Pi and the keyboard is connected to the Raspberry Pi. If the power supply were connected to the keyboard, with the Raspberry Pi powered via the keyboard, then the keyboard would not operate correctly.
Diagram of the Raspberry Pi connected to a monitor and the official Raspberry Pi mouse and keyboard and hub
It should be noted that to get the Keyboard and Mouse working with a Raspberry Pi Zero/Zero W you will need a USB OTG Cable.
Getting started guide
Download Raspberry Pi's guide to using the Raspberry Pi keyboard and hub
