12mm Hex Wheel Adapter for 6mm Shaft, Extended (2-Pack)

SKU: POLOLU-2687 Brand: Pololu

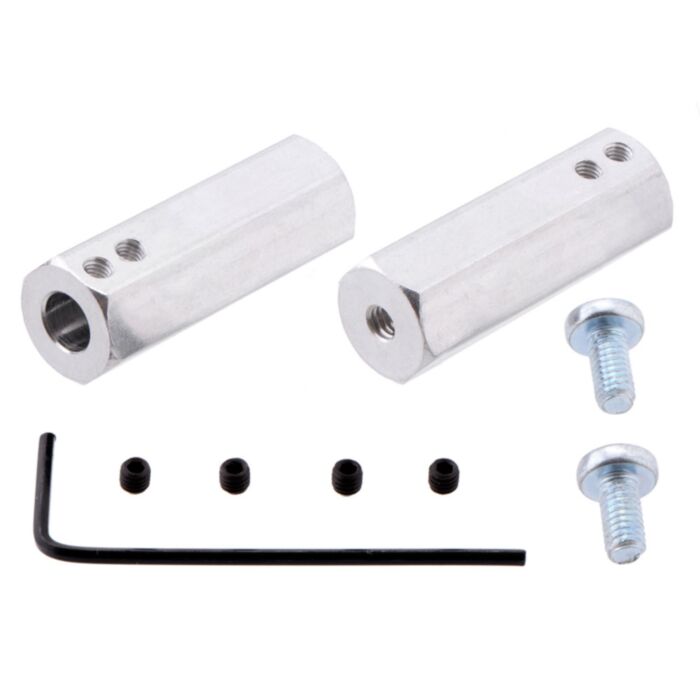

These 35 mm long aluminum adapters convert a 6 mm diameter shaft to a 12 mm hex shaft that is compatible with many common hobby RC wheels. The set includes two adapters, two M4 screws for securing wheels to the adapters, four M3 set screws for securing the adapters to motor shafts, and one 1.5 mm Allen wrench for use with the set screws.

$10.55 AUD, inc GST

$9.59 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

10-25 $9.30 (exc GST)
25+ $9.11 (exc GST)

These light-weight aluminum shaft adapters convert a typical motor output shaft into a 12 mm hex shaft that is compatible with many common hobby RC wheels, such as the Dagu Wild Thumper Wheels. The side of each adapter that mounts to the wheel contains a hole tapped for M4 screws, and the other side of the adapter mounts to a motor shaft with two M3 set screws. This set includes a pair of adapters, two 8 mm M4 screws, four M3 set screws, and one 1.5 mm Allen wrench for use with the set screws.

The adapters are available in the following versions:

12 mm Hex Wheel Adapter for 3 mm Shaft (17 mm length)
12 mm Hex Wheel Adapter for 4 mm Shaft (17 mm length)
12 mm Hex Wheel Adapter for 6 mm Shaft (20 mm length)
12 mm Hex Wheel Adapter for 6 mm Shaft, Extended (35 mm length)

Details for item #2687

12mm Hex Wheel Adapter for 6mm Shaft (extended) on a 37D mm Metal Gearmotor.

This version of the 12 mm hex adapter is 35 mm in length and designed to work with 6 mm diameter output shafts, including round and “D” shafts. It works well with Pololu's 37D mm metal gearmotors, as shown in the picture above. The wheel shown in the above picture is a hobby RC wheel that works with 12mm hex shafts; Pololu do not currently carry this wheel or any other wheels that are compatible with this adapter.

The diagram below shows the dimensions of this shaft adapter and is also available as a downloadable PDF (112k pdf)

Dimension diagram of the Pololu 12mm Hex Wheel Adapter for 6mm Shaft Extended. Units are mm over [inches].

People often buy this product together with:

Pololu Stamped Aluminum L-Bracket Pair for 37D mm Metal Gearmotors

Dagu Wild Thumper Wheel 120x60mm Pair with 4mm Shaft Adapters - Metallic Red

Dagu Wild Thumper Wheel 120x60mm Pair with 4mm Shaft Adapters - Chrome

Dimensions

Size:	12 mm hex × 35 mm length
Length:	35 mm
Weight:	9.1 g¹
Shaft diameter:	6 mm

General specifications

Style:	extended

Notes:

1: For a single adapter only (without set screws or mounting screw).

File downloads

Pololu 12mm hex wheel adapter for 3mm shaft dimension diagram (109k pdf)
Pololu 12mm hex wheel adapter for 4mm shaft dimension diagram (108k pdf)
Pololu 12mm hex wheel adapter for 6mm shaft dimension diagram (134k pdf)
Pololu extended 12mm hex wheel adapter for 6mm shaft dimension diagram (112k pdf)
