12mm Coin Cell Breakout w/ On-Off Switch

SKU: ADA1867

$4.95 AUD, inc GST
$4.50 AUD, exc GST

More Views

12mm Coin Cell Breakout w/ On-Off Switch
4.95 AUD

SKU: ADA1867

$4.95 AUD, inc GST
$4.50 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Warning: This product requires a button battery to operate which is hazardous to young children. Do not use this product for projects that are potentially accessible to young children.

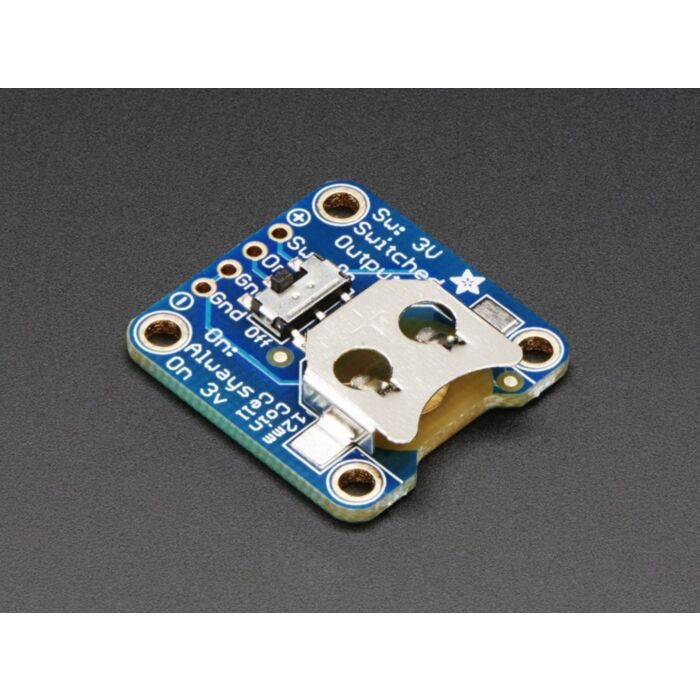

Simple but effective - this breakout board has a CR1220 coin cell battery holder soldered on, an on/off switch and 0.1" pitch breakout pins for easy connecting. Great for powering very low-current projects, or adding a battery backup circuit to a real-time-clock or similar. There's two ground pins, one 'switched' power pin, and one pin that is always on.

Comes with one fully assembled and tested breakout plus a small stick of 0.1" header so you can solder it on and plug into a breadboard.

We also have a version without a switch

Technical Details


  • 25mm x 23mm x 1.5mm / 1" x 0.9" x 0.06"
  • Mounting hole distance: 18mm x 19.8mm / 0.7" x 0.78"
  • Weight: 2g
Documentation and Resources:
