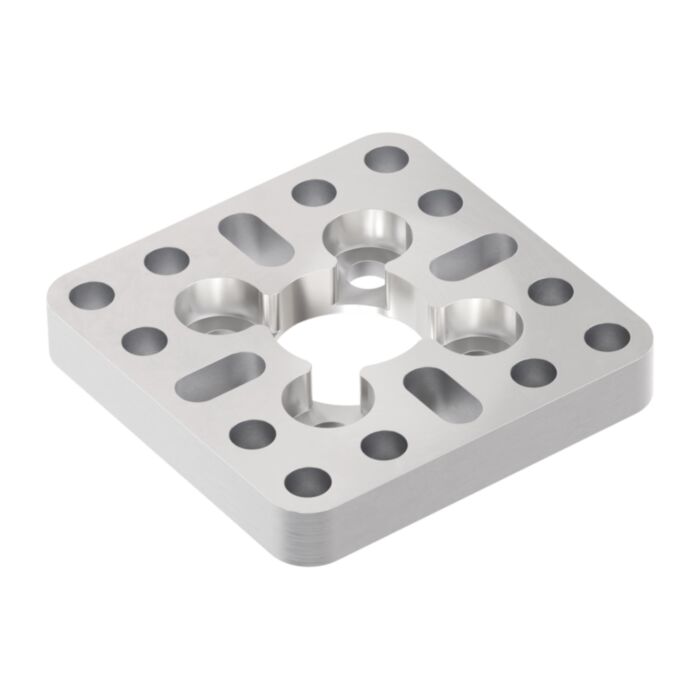

1222 Series Flat Pattern Mount (1-1)

SKU: GB-1222-0001-0001 Brand: goBilda

This Flat Pattern Mount is able to fasten to a part which has threaded holes on the 16mm pattern, leaving the screw heads flush with the...

$12.60 AUD, inc GST

$11.45 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $10.88 (exc GST)
25+ $10.31 (exc GST)

This Flat Pattern Mount is able to fasten to a part which has threaded holes on the goBILDA® 16mm square pattern, leaving the screw heads flush with the top surface. The clean slate allows other parts (such as a ball bearing or a thrust bearing) to rest against that surface.

The hex counterbores—on the goBILDA® 16mm square pattern on the front of the mount, and the goBILDA® 32mm square pattern on the back—can seat screws’ hex heads, as well as hex nuts for screws going the other way, providing for easy one-tool attachment and keeping both surfaces clear for building.

Both sides of the 14mm center hole are counterbored to capture the flange of a bearing. While there are many ways to build an actuator using goRAIL®, this piece plays a lead role in being able to fasten a motor to goRAIL® and driving a lead screw using a coupler.

Downloads

Specs

Weight	15g
Material	Aluminum
Finish	Clear Anodized
