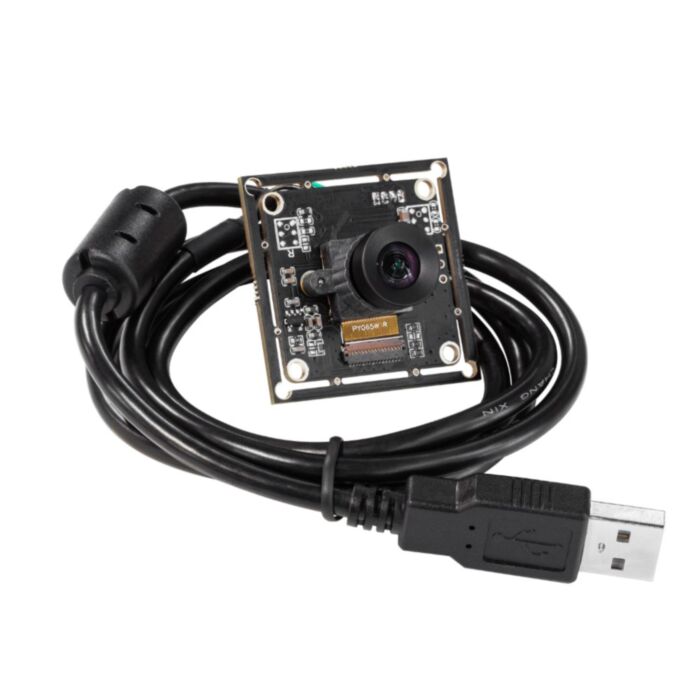

120fps Monochrome Global Shutter USB Camera

SKU: AC-B0332 Brand: Arducam

Arducam B0332 is a new member of the Arducam's USB camera family. It's a 1MP, based on the 1/4" monochrome global shutter OV9281 image sensor.

$83.25 AUD, inc GST

$75.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

6-12 $73.41 (exc GST)
12+ $71.90 (exc GST)

Arducam B0332 is a new member of the Arducam's USB camera family. It's a 1MP, based on the 1/4" monochrome global shutter OV9281 image sensor, UVC compliant, low distortion USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

The global shutter sensor's excellent low-light sensitivity makes it shot crisp sharp and accurate complete black and white images even for the high-speed moving objects.

Features

Based on 1MP monochrome (black&white) global shutter sensor OV9281, assembled with a 70°(H) low distortion M12 lens without IR pass filter, sensitive to IR.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, and support trigger via external signal.
Resolution: 1MP 1280H x 800V;
Frame Rates: MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, and depth and motion detection.
Serial Number: Supports modifying the Serial Number.

Applications

Iris and face recognition
Astrophotography
Gesture and eye tracking
Depth and motion detection
Home video surveillance system

Specifications

Camera

Sensor: 1/4” OV9281
Resolution: 1MP 1280 x 800
Data Format: MJPG/YUY2
Frame Rate:MJPG 120fps@1280 x 800/720P/800 x 600/640 x 480/320 x 240, 100fps@1280 x 800/800 x 600/640 x 480/320 x 240; YUY2 10fps@1280 x 800/1280 x 720.

Lens

Field of View (FOV):70 degree (H)
Lens Mount: M12
IR Sensitivity: No IR filter, sensitive to IR
Focusing Range: 3.3ft (1M) to infinity

Functionality and Compatibility

Adjustable parameter: Contrast/ Saturation/ Exposure/ White Balance
System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver

Power

Power Supply: USB powered 5V
Working Current: MAX 200mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 38mmx38mm (Hole pitch compatible with 34mmx34mm, 28x28mm)
Cable Length: 3.3ft (1M)

NOTE:

This camera module support trigger via an external signal, please refer to Arducam Doc page to get the instruction.
