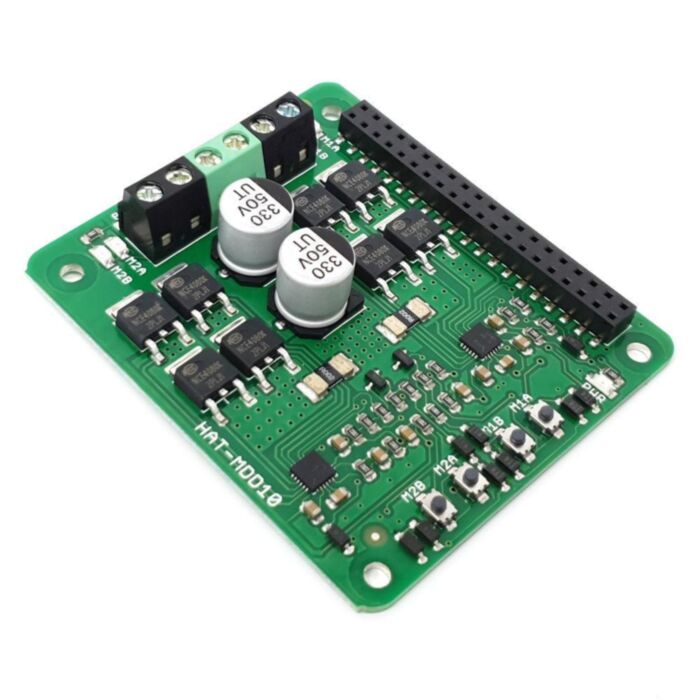

10A 6V-24V DC Raspberry Pi Motor Driver HAT

Rating:
100% of 100
SKU: CE08407 Brand: The Pi Hut
Looking for a high-current motor driver for your Raspberry Pi? How does dual 10A channels sound?! Cytron's latest motor driver is designed for the...
$60.25 AUD, inc GST
$54.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 6-12 $52.58 (exc GST)
  • 12+ $50.94 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Looking for a high-current motor driver for your Raspberry Pi? How does dual 10A channels sound?!

Cytron's latest motor driver is designed for the Raspberry Pi and can drive two high-current brushed DC motors up to 10A continuously with the Raspberry Pi as the controller.

It offers signed-magnitude PWM control of direction and speed and uses full solid-state components which result in faster response times and eliminate wear and tear on the mechanical relay.

There's also a current limiting sensor and auto-cut set at 30A peak to protect the motor driver from over current.

Features

  • Bi-directional control for two brushed DC motors
  • Supports motor voltage ranges from 6VDC to 24VDC
  • On board test button for manual control of motors
  • Every channel output built with LED indicator
  • Maximum current up to 10A continuous (without heatsink at 25°C) and 30A peak (10 seconds)
  • Current limiting at 30A
  • Raspberry Pi GPIO connector
  • Solid state components provide faster response time
  • Fully NMOS H-Bridge for better efficiency and no heat sink is required
  • Regenerative braking
  • Speed control PWM frequency up to 20KHz (actual output frequency is same as input frequency from Raspberry Pi)
  • Support sign-magnitude PWM operation
  • Support TTL PWM from microcontroller, NOT PWM from RC receiver.
  • Dimensions: 67.5mm x 59mm
