1 Wire Pi Plus
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov
Quantity Discounts:
- 10-25 $23.90 (exc GST)
- 25+ $23.40 (exc GST)
Recommended Essentials:
$93.90

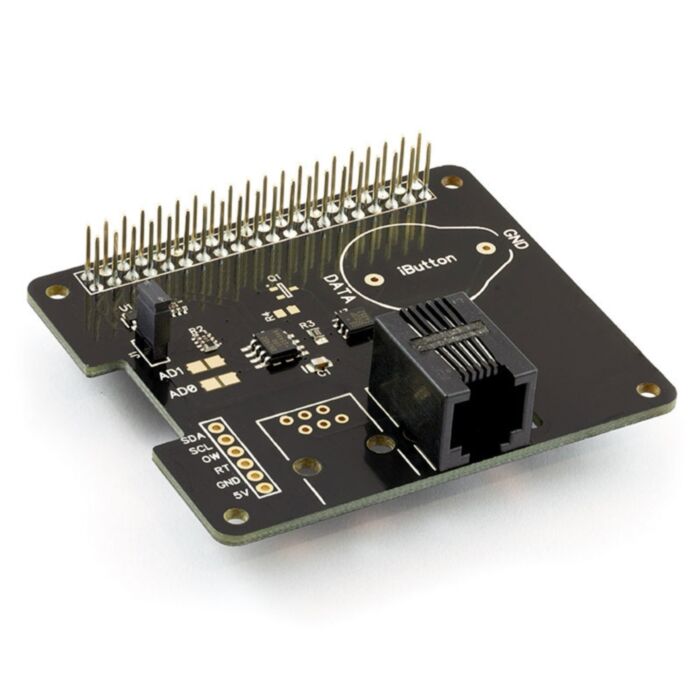

The 1 Wire Pi Plus is a communication board supporting the 1-Wire® protocol designed for use on the Raspberry Pi. A 5V buffered I2C port is also provided on the board.
The 1-Wire® port on the 1 Wire Pi Plus is based around a DS2482-100 I2C to 1-Wire® bridge device. The DS2482-100 provides bi-directional protocol conversion between the I2C port on the Raspberry Pi and any attached 1-Wire® slave devices. An ESD Protection Diode is used to protect the 1 Wire Pi Plus and Raspberry Pi from electrostatic spikes on the 1-Wire® port. Connections to the 1-Wire® port can be made through the RJ-12 socket or the solder points on the PCB. We have a knowledge base article for configuring and using the 1-Wire® port on your Raspberry Pi.
The 1 Wire Pi Plus is powered through the host Raspberry Pi using the GPIO port and extended pins on the GPIO connector allow you to stack the 1 Wire Pi Plus along with other expansion boards.
Space is provided on the board for a 1-Wire® iButton device. iButtons are small metal packed modules that can be used for a wide range of functions from data loggers to temperature monitoring. More information about iButtons can be found on the Maxim Integrated website. To use an iButton on the 1 Wire Pi Plus you will need to solder a DS9094F PCB clip onto the board. Please note that the DS9094F should be positioned to match the orientation marked on the PCB and the + sign on the connector is actually linked to the ground side of the iButton devices.
A 5V input port is also provided allowing you to use an external power supply on the 1-Wire® interface, reducing the load on the Raspberry Pi. If you choose to use the external 5V input please remove the jumper on the board to isolate the Raspberry Pi 5V bus.
Features
- 1-Wire® to I2C host interface with ESD protection diode.
- Stackable with other Raspberry Pi accessory boards.
- Buffered 5V I2C port.
- External 5V power input for 1-Wire® interface.
- I2C address selection via solder jumpers.
Specifications
- Vdd (5V pin): 5.0V
- Maximum current on 1-Wire pins: ±20 mA
- I2C SDA/SCL voltage: 5.0 V
- I2C port current: 100 mA
Documents
